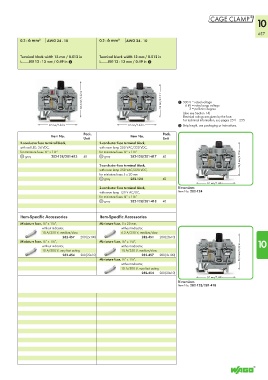

Page 459 - Wago_Rail-MountedTerminalBlockSystems_Volume1_2015_US.pdf

" 10

457
0.2 - 6 mm² AWG 24 - 10 0.2 - 6 mm² AWG 24 - 10

Terminal block width 13 mm / 0.512 in Terminal block width 13 mm / 0.512 in
L 12 - 13 mm / 0.49 in 2 L 12 - 13 mm / 0.49 in 2

<____ 56,5 mm/2.22 in _____> <____ 54 mm/2.13 in ____> 1 500 V = rated voltage

6 kV = rated surge voltage
3 = pollution degree
(also see Section 14)
Electrical ratings are given by the fuse.
For technical information, see pages 254 – 255
<______ 62 mm/2.44 in _______> <______ 62 mm/2.44 in _______> 2 Strip length, see packaging or instructions.
Pack. Pack.
Item No. Item No.
Unit Unit
2-conductor fuse terminal block, 2-conductor fuse terminal block,
with red LED, 24 VDC, with neon lamp 250 VAC/220 VDC,
for miniature fuses ¼“ x 1¼“ for miniature fuses ¼“ x 1¼“
gray 282-128/281-413 40 gray 282-128/281-417 40 <____ 54,5 mm/2.15 in ____>
2-conductor fuse terminal block,
with neon lamp 250 VAC/220 VDC,
for miniature fuses 5 x 20 mm
gray 282-124 40
<______ 62 mm/2.44 in _______>
2-conductor fuse terminal block, Dimensions
with neon lamp 120 V AC/DC, Item No. 282-124
for miniature fuses ¼“ x 1¼“
gray 282-128/281-418 40

Item-Specific Accessories Item-Specific Accessories
Miniature fuse, ¼“ x 1¼“, Miniature fuse, 5 x 20 mm,
without indicator, without indicator,
10 A/250 V, medium/slow 6.3 A/250 V, medium/slow
282-457 200 (2x100) 282-451 200 (20x10)
Miniature fuse, ¼“ x 1¼“, Miniature fuse, ¼“ x 1¼“, 10
without indicator, without indicator,
10 A/500 V, very fast acting 10 A/250 V, medium/slow <____ 56,5 mm/2.22 in _____>
282-454 200 (20x10) 282-457 200 (2x100)
Miniature fuse, ¼“ x 1¼“,
without indicator,
10 A/500 V, very fast acting
282-454 200 (20x10)
<______ 62 mm/2.44 in _______>
Dimensions
Item No. 282-128/281-418
