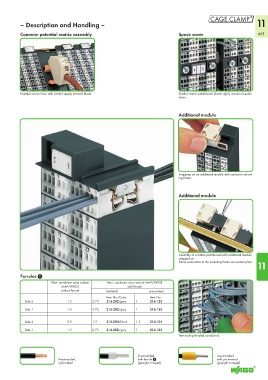

– Description and Handling – 11
Common potential matrix assembly Space saver 461
Example shown here with (white) supply terminal block. Slimline matrix patchboard (lower right), mounted upside
down.
Additional module
Snapping on an additional module with contact to mount-
ing frame.
Additional module
Assembly of a matrix patchboard with additional module
snapped on.
11
Direct connection to the mounting frame via contact plate.
Ferrules 1
Max. conductor cross section Max. conductor cross section (mm²/AWG)
(mm²/AWG) with ferrule
without ferrule insulated uninsulated
Item No./Color Item No.
Side 2 1.5 0.75 216-202/grey 1 216-123
Side 1 1.5 0.75 216-202/grey 1 216-123
Side 2 2.5 1.5 216-204/black 1.5 216-104
Side 1 1.5 0.75 216-202/grey 1 216-123
Terminating ferruled conductors.
fine-stranded, fine-stranded,
fine-stranded, with ferrule 1 with pin terminal
tip-bonded (gastight crimped) (gastight crimped)
