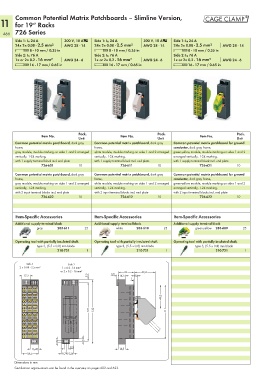

Page 468 - Wago_Rail-MountedTerminalBlockSystems_Volume1_2015_US.pdf

"

Common Potential Matrix Patchboards – Slimline Version,
11 for 19“ Racks
466 726 Series
Side 1: I N 24 A 300 V, 10 AU Side 1: I N 24 A 300 V, 10 AU Side 1: I N 24 A
24x 2x 0.08 - 2.5 mm² AWG 28 - 14 24x 2x 0.08 - 2.5 mm² AWG 28 - 14 24x 2x 0.08 - 2.5 mm² AWG 28 - 14
L 8 - 10 mm / 0.35 in L 8 - 10 mm / 0.35 in L 8 - 10 mm / 0.35 in
Side 2: I N 76 A Side 2: I N 76 A Side 2: I N 76 A
1x or 2x 0.2 - 16 mm² AWG 24 - 6 1x or 2x 0.2 - 16 mm² AWG 24 - 6 1x or 2x 0.2 - 16 mm² AWG 24 - 6
L 16 - 17 mm / 0.65 in L 16 - 17 mm / 0.65 in L 16 - 17 mm / 0.65 in

Pack. Pack. Pack.
Item No. Item No. Item No.
Unit Unit Unit
Common potential matrix patchboard, dark gray Common potential matrix patchboard, dark gray Common potential matrix patchboard for ground
frame, frame, conductor, dark gray frame,
gray module, module marking on sides 1 and 2 arranged white module, module marking on sides 1 and 2 arranged green-yellow module, module marking on sides 1 and 2
vertically, 1-24 marking, vertically, 1-24 marking, arranged vertically, 1-24 marking,
with 1 supply terminal block incl. end plate with 1 supply terminal block incl. end plate with 1 supply terminal block incl. end plate
726-601 10 726-611 10 726-621 10

Common potential matrix patchboard, dark gray Common potential matrix patchboard, dark gray Common potential matrix patchboard for ground
frame, frame, conductor, dark gray frame,
gray module, module marking on sides 1 and 2 arranged white module, module marking on sides 1 and 2 arranged green-yellow module, module marking on sides 1 and 2
vertically, 1-24 marking, vertically, 1-24 marking, arranged vertically, 1-24 marking,
with 2 input terminal blocks incl. end plate with 2 input terminal blocks incl. end plate with 2 input terminal blocks incl. end plate
726-602 10 726-612 10 726-622 10

Item-Specific Accessories Item-Specific Accessories Item-Specific Accessories
Additional supply terminal block Additional supply terminal block Additional supply terminal block
gray 283-611 25 white 283-610 25 green-yellow 283-609 25

Operating tool with partially insulated shaft, Operating tool with partially insulated shaft, Operating tool with partially insulated shaft,
type 3, (5.5 x 0.8) mm blade type 3, (5.5 x 0.8) mm blade type 3, (5.5 x 0.8) mm blade
210-721 1 210-721 1 210-721 1

Side 1 Side 2
2 x 0.08 - 2.5 mm² 1 x 0.2 - 16 mm²
or 2 x 0.2 - 16 mm² 33 43,4
17,2 5,5 3,5 14,5 6,5
1

49,3

121 132 111

5
5
9,5
16,45 14,5
34,6 9,7 15,24
Dimensions in mm
Certification organizations can be found in the overview on pages 622 and 623.
