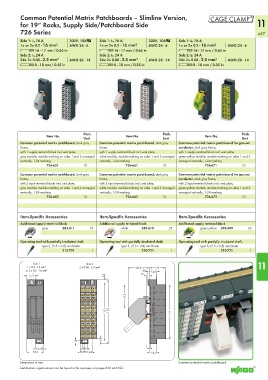

Common Potential Matrix Patchboards – Slimline Version,
for 19“ Racks, Supply Side/Patchboard Side 11
726 Series 467
Side 1: I N 76 A 300V, 10AU Side 1: I N 76 A 300V, 10AU Side 1: I N 76 A
1x or 2x 0.2 - 16 mm² AWG 24 - 6 1x or 2x 0.2 - 16 mm² AWG 24 - 6 1x or 2x 0.2 - 16 mm² AWG 24 - 6
L 16 - 17 mm / 0.65 in L 16 - 17 mm / 0.65 in L 16 - 17 mm / 0.65 in
Side 2: I N 24 A Side 2: I N 24 A Side 2: I N 24 A
24x 2x 0.08 - 2.5 mm² AWG 28 - 14 24x 2x 0.08 - 2.5 mm² AWG 28 - 14 24x 2x 0.08 - 2.5 mm² AWG 28 - 14
L 8 - 10 mm / 0.35 in L 8 - 10 mm / 0.35 in L 8 - 10 mm / 0.35 in

Pack. Pack. Pack.
Item No. Item No. Item No.
Unit Unit Unit
Common potential matrix patchboard, dark gray Common potential matrix patchboard, dark gray Common potential matrix patchboard for ground
frame, frame, conductor, dark gray frame,
with 1 supply terminal block incl. end plate, with 1 supply terminal block incl. end plate, with 1 supply terminal block incl. end plate,
gray module, module marking on sides 1 and 2 arranged white module, module marking on sides 1 and 2 arranged green-yellow module, module marking on sides 1 and 2
vertically, 1-24 marking vertically, 1-24 marking arranged vertically, 1-24 marking
726-651 10 726-661 10 726-671 10

Common potential matrix patchboard, dark gray Common potential matrix patchboard, dark gray Common potential matrix patchboard for ground
frame, frame, conductor, dark gray frame,
with 2 input terminal blocks incl. end plate, with 2 input terminal blocks incl. end plate, with 2 input terminal blocks incl. end plate,
gray module, module marking on sides 1 and 2 arranged white module, module marking on sides 1 and 2 arranged green-yellow module, module marking on sides 1 and 2
vertically, 1-24 marking vertically, 1-24 marking arranged vertically, 1-24 marking
726-652 10 726-662 10 726-672 10

Item-Specific Accessories Item-Specific Accessories Item-Specific Accessories
Additional supply terminal block Additional supply terminal block Additional supply terminal block
gray 283-611 25 white 283-610 25 green-yellow 283-609 25

Operating tool with partially insulated shaft, Operating tool with partially insulated shaft, Operating tool with partially insulated shaft,
type 3, (5.5 x 0.8) mm blade type 3, (5.5 x 0.8) mm blade type 3, (5.5 x 0.8) mm blade
210-721 1 210-721 1 210-721 1

Side 1 Side 2 11
1 x 0.2 - 16 mm² 2 x 0.08 - 2.5 mm² 43,4 33
or 2 x 0.2 - 16 mm² 3,5 14,5
6,5
17,2 5,5

49,3

121 132 111

5
5
1
16,45 9,5
34,6 9,7 15,24 14,5
Dimensions in mm Common potential matrix patchboard
Certification organizations can be found in the overview on pages 622 and 623.
