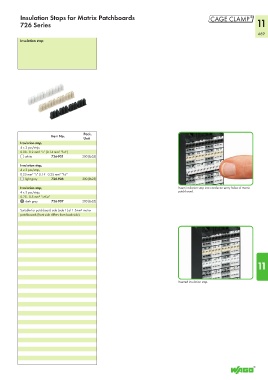

Page 471 - Wago_Rail-MountedTerminalBlockSystems_Volume1_2015_US.pdf

"

Insulation Stops for Matrix Patchboards
726 Series 11
469
Insulation stop

Pack.
Item No.
Unit
Insulation stop,
4 x 3 pcs/strip,
0.08 - 0.2 mm² “s” (0.14 mm² “f-st”)
white 726-901 200 (8x25)
Insulation stop,
4 x 3 pcs/strip,
0.25 mm² “s” 0.14 - 0.25 mm² “f-st”
light gray 726-906 200 (8x25)
Insulation stop, Insert insulation stop into conductor entry holes of matrix
4 x 3 pcs/strip, patchboard.
0.25 - 0.5 mm² “s+f-st”
dark gray 726-907 200 (8x25)

Suitable for patchboard side (side 1) of 1.5mm² matrix
patchboards (front side differs from back side).

11

Inserted insulation stop.
