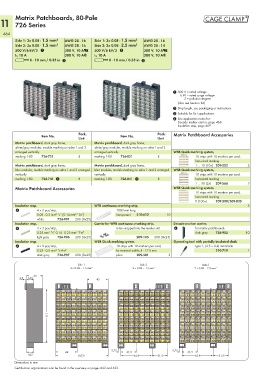

Page 466 - Wago_Rail-MountedTerminalBlockSystems_Volume1_2015_US.pdf

"

Matrix Patchboards, 80-Pole
11 726 Series
464
Side 1: 3x 0.08 - 1.5 mm² AWG 28 - 16 Side 1: 3x 0.08 - 1.5 mm² AWG 28 - 16
Side 2: 3x 0.08 - 1.5 mm² AWG 28 - 16 Side 2: 2x 0.08 - 2.5 mm² AWG 28 - 14
500 V/6 kV/3 1 300 V, 10 AU 500 V/6 kV/3 1 300 V, 10 AU
I N 10 A 300 V, 10 A2 I N 10 A 300 V, 10 A2
L 8 - 10 mm / 0.35 in 2 L 8 - 10 mm / 0.35 in 2

1 500 V = rated voltage
6 kV = rated surge voltage
3 = pollution degree
(also see Section 14)
2 Strip length, see packaging or instructions.
3 Suitable for Ex i applications
4 See application notes for:
Decade marker carrier, page 468
Insulation stop, page 469
Pack. Pack. Matrix Patchboard Accessories
Item No. Item No.
Unit Unit
Matrix patchboard, dark gray frame, Matrix patchboard, dark gray frame,
white/gray modules, module marking on sides 1 and 2 white/gray modules, module marking on sides 1 and 2
arranged vertically arranged vertically WSB Quick marking system,
marking 1-80 726-721 8 marking 1-80 726-821 8 10 strips with 10 markers per card,
horizontal marking
Matrix patchboard, dark gray frame, Matrix patchboard, dark gray frame, 1 ... 10 (10x) 209-502 5
blue modules, module marking on sides 1 and 2 arranged blue modules, module marking on sides 1 and 2 arranged WSB Quick marking system,
vertically vertically 10 strips with 10 markers per card,
marking 1-80 726-741 3 8 marking 1-80 726-841 3 8 horizontal marking
1 ... 50 (2x) 209-566 5
Matrix Patchboard Accessories WSB Quick marking system,
10 strips with 10 markers per card,
horizontal marking
X (100x) 209-500/209-035
Insulation stop, WFB continuous marking strip, 5
4 4 x 3 pcs/strip, 1000 mm long
0.08 - 0.2 mm² “s” (0.14 mm² “f-st”) transparent 210-612 10
white 726-901 200 (8x25)
Insulation stop, Carrier for WFB continuous marking strip, Decade marker carrier,
4 4 x 3 pcs/strip, to be snapped into the marker slot 4 for matrix patchboards
0.25 mm² “s” 0.14 - 0.25 mm² “f-st” dark gray 726-905 10
light gray 726-906 200 (8x25) 209-185 200 (8x25)
Insulation stop, WSB Quick marking system, Operating tool with partially insulated shaft,
4 4 x 3 pcs/strip, 10 strips with 10 markers per card, type 1, (2.5 x 0.4) mm blade
0.25 - 0.5 mm² “s+f-st” for terminal widths 5 - 17.5 mm 210-719 1
dark gray 726-907 200 (8x25) plain 209-501 5

Side 1 Side 2 Side 2
3 x 0.08 – 1.5 mm² 3 x 0.08 – 1.5 mm² 2 x 0.08 – 2.5 mm²
<___33___>
3,5
14,5
__> <_> <_____43_____>
<_________________ 111 ________________>

5,75 5,75
<_> <_____44_____> ___> <__31,5__> ___> <__31,5__>
14,5 <_______________107,9_________________> <________63,9_________><__31,5__> <________63,9_________><__31,5__>
Dimensions in mm
Certification organizations can be found in the overview on pages 622 and 623.
