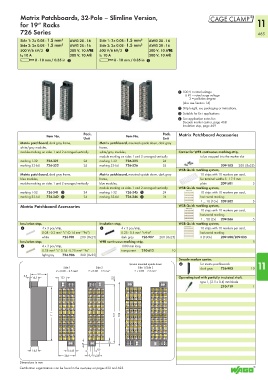

Matrix Patchboards, 32-Pole – Slimline Version,
for 19“ Racks 11
726 Series 465
Side 1: 2x 0.08 - 1.5 mm² AWG 28 - 16 Side 1: 2x 0.08 - 1.5 mm² AWG 28 - 16
Side 2: 2x 0.08 - 1.5 mm² AWG 28 - 16 Side 2: 2x 0.08 - 1.5 mm² AWG 28 - 16
500 V/6 kV/3 1 300 V, 10 AU 500 V/6 kV/3 1 300 V, 10 AU
I N 10 A 300 V, 10 A2 I N 10 A 300 V, 10 A2
L 8 - 10 mm / 0.35 in 2 L 8 - 10 mm / 0.35 in 2

1 500 V = rated voltage
6 kV = rated surge voltage
3 = pollution degree
(also see Section 14)
2 Strip length, see packaging or instructions.
3 Suitable for Ex i applications
4 See application notes for:
Decade marker carrier, page 468
Insulation stop, page 469
Pack. Pack. Matrix Patchboard Accessories
Item No. Item No.
Unit Unit
Matrix patchboard, dark gray frame, Matrix patchboard, mounted upside down, dark gray
white/gray modules, frame,
module marking on sides 1 and 2 arranged vertically white/gray modules, Carrier for WFB continuous marking strip,
module marking on sides 1 and 2 arranged vertically to be snapped into the marker slot
marking 1-32 726-321 24 marking 1-32 726-325 24
marking 33-64 726-322 24 marking 33-64 726-326 24 209-185 200 (8x25)
WSB Quick marking system,
Matrix patchboard, dark gray frame, Matrix patchboard, mounted upside down, dark gray 10 strips with 10 markers per card,
blue modules, frame, for terminal widths 5 - 17.5 mm
module marking on sides 1 and 2 arranged vertically blue modules, plain 209-501 5
module marking on sides 1 and 2 arranged vertically WSB Quick marking system,
marking 1-32 726-341 3 24 marking 1-32 726-345 3 24 10 strips with 10 markers per card,
marking 33-64 726-342 3 24 marking 33-64 726-346 3 24 horizontal marking
1 ... 10 (10x) 209-502 5
Matrix Patchboard Accessories WSB Quick marking system,
10 strips with 10 markers per card,
horizontal marking
1 ... 50 (2x) 209-566 5
Insulation stop, Insulation stop, WSB Quick marking system,
4 4 x 3 pcs/strip, 4 4 x 3 pcs/strip, 10 strips with 10 markers per card,
0.08 - 0.2 mm² “s” (0.14 mm² “f-st”) 0.25 - 0.5 mm² “s+f-st” horizontal marking
white 726-901 200 (8x25) dark gray 726-907 200 (8x25) X (100x) 209-500/209-035
Insulation stop, WFB continuous marking strip, 5
4 4 x 3 pcs/strip, 1000 mm long
0.25 mm² “s” 0.14 - 0.25 mm² “f-st” transparent 210-612 10
light gray 726-906 200 (8x25)
Decade marker carrier,
Version mounted upside down 4 for matrix patchboards 11
Side 1 Side 2 Side 1/Side 2 dark gray 726-905 10
2 x 0.08 – 2.5 mm² 2 x 0.08 – 2.5 mm² 2 x 0.08 – 2.5 mm²
33
3,5
14,5 17,2 5,5 Operating tool with partially insulated shaft,
type 1, (2.5 x 0.4) mm blade
210-719 1

111 121 132

5
5
14,5 16,45 9,5
34,6 9,7 15,24
Dimensions in mm
Certification organizations can be found in the overview on pages 622 and 623.
