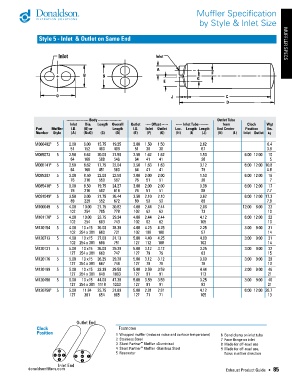

Page 87 - Donaldson - Exhaust product guide for medium and heavy-duty vehicles and equipment

Muffler Specification
by Style & Inlet Size

Style 5 - Inlet & Outlet on Same End MUFFLER SPECS

Inlet Inlet

A
B B G F
E

O J C
D

----------------- Body ------------------ Outlet Tube
Inlet Dia. Length Overall Outlet ---- Offset --- -- ----- Inlet Tube ------- from Clock Wgt
Part Muffler I.D. (B) or Length I.D. Inlet Outlet Loc. Length Length End Center Position lbs.
Number Style (A) (BxO) (C) (D) (E) (F) (G) (H) (I) (J) (K) (L) Inlet Outlet kg
M060482 8 5 2.00 6.00 15.75 19.25 2.00 1.50 1.50 2.62 8.4
51 152 400 489 51 38 38 67 3.8
M065073 5 2.50 6.62 20.00 21.50 2.50 1.62 1.62 1.50 6:00 12:00 10
64 168 508 546 64 41 41 38 5
M065141 8 5 2.50 6.62 17.75 22.04 2.50 1.63 1.63 3.12 6:00 12:00 10.6
64 168 451 560 64 41 41 79 4.8
M085207 5 3.00 8.50 22.00 23.50 3.00 2.00 2.00 1.50 6:00 12:00 16
76 216 559 597 76 51 51 38 7
M085410 8 5 3.00 8.50 19.75 24.27 3.00 2.00 2.00 3.38 6:00 12:00 17
76 216 502 616 76 51 51 86 7.7
M091049 8 5 3.50 9.00 21.75 26.44 3.50 2.10 2.10 3.62 6:00 12:00 17.3
89 229 552 672 89 53 53 89 7.9
M100049 5 4.00 10.00 27.75 30.62 4.00 2.44 2.44 2.88 12:00 6:00 23
102 254 705 778 102 62 62 73 10
M101170 8 5 4.00 10.00 23.75 29.24 4.00 2.44 2.44 4.12 6:00 12:00 22
102 254 603 743 102 62 62 105 10
M120154 5 4.00 10 x15 26.00 28.38 4.00 4.25 4.25 2.25 3:00 9:00 31
102 254 x 381 660 721 102 108 108 57 14
M120713 5 4.00 10 x15 27.00 31.13 5.00 4.40 4.25 4.00 3:00 9:00 31
102 254 x 381 686 791 127 112 108 102 14
M120131 5 5.00 10 x15 26.00 29.39 5.00 3.12 3.12 3.25 3:00 9:00 32
127 254 x 381 660 747 127 79 79 83 15
M120176 5 5.00 10 x15 26.25 29.38 5.00 3.12 3.12 3.00 3:00 9:00 29
127 254 x 381 667 746 127 79 79 76 13
M120189 5 5.00 10 x15 33.38 39.50 5.00 3.59 3.59 4.44 3:00 9:00 46
127 254 x 381 848 1003 127 91 91 113 21
M120450 5 5.00 10 x15 44.00 47.38 5.00 3.59 3.59 3.25 3:00 9:00 46
127 254 x 381 1118 1203 127 91 91 83 21
M120750 8 5 5.00 11.84 25.75 31.69 5.00 2.81 2.81 4.12 6:00 12:00 28.7
127 301 654 805 127 71 71 105 13

Outlet End
Clock Footnotes
Position 1 Wrapped muffler (reduces noise and surface temperature) 6 Band clamp on inlet tube
2 Stainless Steel 7 Face flange on inlet
™
3 Silent Partner Muffler -Aluminized 8 Made for off-road use
4 Silent Partner Muffler -Stainless Steel 9 Made for off-road use,
™
5 Resonator flows in either direction
Inlet End
donaldsonfilters.com Exhaust Product Guide • 85
