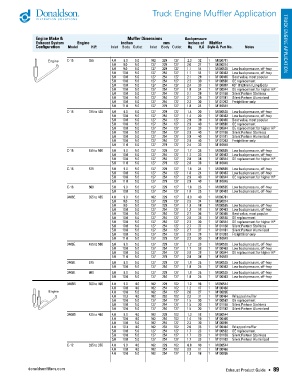

Page 91 - Donaldson - Exhaust product guide for medium and heavy-duty vehicles and equipment

Truck Engine Muffler Application

Engine Make & Muffler Dimensions Backpressure
Exhaust System Engine inches mm inches of Muffler TRUCK ENGINE APPLICATION
Configuration Model H.P. Inlet Body Outlet Inlet Body Outlet Hg H 2 0 Style & Part No. Notes

C-15 355 4.0 9.0 5.0 102 229 127 2.3 32 1 M090781
5.0 9.0 5.0 127 229 127 2.0 27 1 M090074
5.0 9.0 5.0 127 229 127 1.1 14 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.1 14 1 M100463 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 2.1 29 1 M100465 Best value, most popular
5.0 10.0 5.0 127 254 127 2.2 30 1 M100580 OE replacement
5.0 10.0 5.0 127 254 127 2.4 33 1 M100807 60” (1524mm) Long Body
5.0 10.0 5.0 127 254 127 1.8 24 1 M100944 OE replacement for higher HP
5.0 10.0 5.0 127 254 127 2.1 29 1 M101158 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 2.1 29 1 M101181 Silent Partner Aluminized
5.0 10.0 5.0 127 254 127 2.2 30 1 M101263 Freightliner only
5.0 11.0 5.0 127 279 127 1.8 24 1 M110849
C-15 375 to 435 5.0 9.0 5.0 127 229 127 1.4 20 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.4 20 1 M100463 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 2.9 39 1 M100465 Best value, most popular
5.0 10.0 5.0 127 254 127 2.9 40 1 M100580 OE replacement
5.0 10.0 5.0 127 254 127 2.4 33 1 M100944 OE replacement for higher HP
5.0 10.0 5.0 127 254 127 2.9 40 1 M101158 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 2.9 40 1 M101181 Silent Partner Aluminized
5.0 10.0 5.0 127 254 127 2.9 40 1 M101263 Freightliner only
5.0 11.0 5.0 127 279 127 2.4 33 1 M110849
C-15 455 to 500 5.0 9.0 5.0 127 229 127 1.7 23 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.7 23 1 M100463 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 2.8 38 1 M100944 OE replacement for higher HP
5.0 11.0 5.0 127 279 127 2.8 38 1 M110849
C-16 575 5.0 9.0 5.0 127 229 127 1.8 24 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.8 24 1 M100463 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 2.9 40 1 M100944 OE replacement for higher HP
5.0 11.0 5.0 127 279 127 2.9 40 1 M110849
C-16 600 5.0 9.0 5.0 127 229 127 1.8 25 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.8 25 1 M100463 Low backpressure, off-hwy
3406E 355 to 435 4.0 9.0 5.0 102 229 127 3.0 40 1 M090781
5.0 9.0 5.0 127 229 127 2.5 34 1 M090074
5.0 9.0 5.0 127 229 127 1.3 18 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.3 18 1 M100463 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 2.7 36 1 M100465 Best value, most popular
5.0 10.0 5.0 127 254 127 2.8 38 1 M100580 OE replacement
5.0 10.0 5.0 127 254 127 2.2 30 1 M100944 OE replacement for higher HP
5.0 10.0 5.0 127 254 127 2.7 37 1 M101158 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 2.7 37 1 M101181 Silent Partner Aluminized
5.0 10.0 5.0 127 254 127 2.8 38 1 M101263 Freightliner only
5.0 11.0 5.0 127 279 127 2.2 30 1 M110849
3406E 455 to 500 5.0 9.0 5.0 127 229 127 1.7 23 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.7 23 1 M100463 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 2.8 38 1 M100944 OE replacement for higher HP
5.0 11.0 5.0 127 279 127 2.8 38 1 M110849
3406E 575 5.0 9.0 5.0 127 229 127 1.8 25 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.8 25 1 M100463 Low backpressure, off-hwy
3406E 600 5.0 9.0 5.0 127 229 127 1.8 25 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.8 25 1 M100463 Low backpressure, off-hwy
3406B 350 to 400 4.0 9.0 4.0 102 229 102 1.2 16 1 M090544
4.0 10.0 4.0 102 254 102 1.2 17 1 M100466
4.0 10.0 5.0 102 254 127 2.0 27 1 M100695
4.0 10.3 4.0 102 262 102 2.3 31 1 M100464 Wrapped muffler
5.0 10.0 5.0 127 254 127 1.5 20 1 M100582 OE replacement
5.0 10.0 5.0 127 254 127 1.5 20 1 M101159 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 1.5 20 1 M101182 Silent Partner Aluminized
3406B 425 to 460 4.0 9.0 4.0 102 229 102 1.3 18 1 M090544
4.0 10.0 4.0 102 254 102 1.4 19 1 M100466
4.0 10.0 5.0 102 254 127 2.2 30 1 M100695
4.0 10.3 4.0 102 262 102 2.6 35 1 M100464 Wrapped muffler
5.0 10.0 5.0 127 254 127 1.7 23 1 M100582 OE replacement
5.0 10.0 5.0 127 254 127 1.7 23 1 M101159 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 1.7 23 1 M101182 Silent Partner Aluminized
C-12 335 to 355 4.0 9.0 4.0 102 229 102 0.8 10 1 M090544
4.0 10.0 4.0 102 254 102 0.8 11 1 M100466
4.0 10.0 5.0 102 254 127 1.3 18 1 M100695

donaldsonfilters.com Exhaust Product Guide • 89
