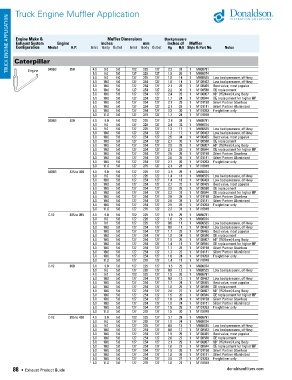

Truck Engine Muffler Application
TRUCK ENGINE APPLICATION Caterpillar Model Engine H.P. Inlet Body Outlet Inlet Body Outlet Backpressure Notes

Muffler Dimensions
Engine Make &
inches of Muffler
mm
Exhaust System
inches
Configuration
Hg
H 2 0 Style & Part No.
9.0
26
M090074
5.0
229
5.0
127
127
1.9
9.0
229
5.0
5.0

M090535 Low backpressure, off-hwy
14
1.0
127
3406B 350 4.0 9.0 5.0 102 229 127 2.3 31 1 1 1 M090781
127
5.0 10.0 5.0 127 254 127 1.0 14 1 M100463 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 2.1 28 1 M100465 Best value, most popular
5.0 10.0 5.0 127 254 127 2.2 30 1 M100580 OE replacement
5.0 10.0 5.0 127 254 127 2.4 32 1 M100807 60” (1524mm) Long Body
5.0 10.0 5.0 127 254 127 1.7 24 1 M100944 OE replacement for higher HP
5.0 10.0 5.0 127 254 127 2.1 29 1 M101158 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 2.1 29 1 M101181 Silent Partner Aluminized
5.0 10.0 5.0 127 254 127 2.2 30 1 M101263 Freightliner only
5.0 11.0 5.0 127 279 127 1.7 24 1 M110849
3406B 400 4.0 9.0 5.0 102 229 127 2.8 38 1 M090781
5.0 9.0 5.0 127 229 127 2.4 32 1 M090074
5.0 9.0 5.0 127 229 127 1.3 17 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.3 17 1 M100463 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 2.5 34 1 M100465 Best value, most popular
5.0 10.0 5.0 127 254 127 2.7 36 1 M100580 OE replacement
5.0 10.0 5.0 127 254 127 2.9 39 1 M100807 60” (1524mm) Long Body
5.0 10.0 5.0 127 254 127 2.1 29 1 M100944 OE replacement for higher HP
5.0 10.0 5.0 127 254 127 2.6 35 1 M101158 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 2.6 35 1 M101181 Silent Partner Aluminized
5.0 10.0 5.0 127 254 127 2.7 36 1 M101263 Freightliner only
5.0 11.0 5.0 127 279 127 2.1 28 1 M110849
3406B 425 to 460 5.0 9.0 5.0 127 229 127 2.5 35 1 M090074
5.0 9.0 5.0 127 229 127 1.4 18 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.4 18 1 M100463 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 2.7 37 1 M100465 Best value, most popular
5.0 10.0 5.0 127 254 127 2.9 39 1 M100580 OE replacement
5.0 10.0 5.0 127 254 127 2.3 31 1 M100944 OE replacement for higher HP
5.0 10.0 5.0 127 254 127 2.8 38 1 M101158 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 2.8 38 1 M101181 Silent Partner Aluminized
5.0 10.0 5.0 127 254 127 2.9 39 1 M101263 Freightliner only
5.0 11.0 5.0 127 279 127 2.3 31 1 M110849
C-12 335 to 355 4.0 9.0 5.0 102 229 127 1.9 25 1 M090781
5.0 9.0 5.0 127 229 127 1.6 21 1 M090074
5.0 9.0 5.0 127 229 127 0.8 11 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 0.8 11 1 M100463 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.7 23 1 M100465 Best value, most popular
5.0 10.0 5.0 127 254 127 1.8 24 1 M100580 OE replacement
5.0 10.0 5.0 127 254 127 1.9 26 1 M100807 60” (1524mm) Long Body
5.0 10.0 5.0 127 254 127 1.4 19 1 M100944 OE replacement for higher HP
5.0 10.0 5.0 127 254 127 1.7 23 1 M101158 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 1.7 23 1 M101181 Silent Partner Aluminized
5.0 10.0 5.0 127 254 127 1.8 24 1 M101263 Freightliner only
5.0 11.0 5.0 127 279 127 1.4 19 1 M110849
C-12 380 5.0 9.0 5.0 127 229 127 1.6 22 1 M090074
5.0 9.0 5.0 127 229 127 0.9 12 1 M090535 Low backpressure, off-hwy
4.0 9.0 5.0 102 229 127 1.9 26 1 M090781
5.0 10.0 5.0 127 254 127 0.9 12 1 M100463 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.7 24 1 M100465 Best value, most popular
5.0 10.0 5.0 127 254 127 1.8 25 1 M100580 OE replacement
5.0 10.0 5.0 127 254 127 2.0 27 1 M100807 60” (1524mm) Long Body
5.0 10.0 5.0 127 254 127 1.5 20 1 M100944 OE replacement for higher HP
5.0 10.0 5.0 127 254 127 1.8 24 1 M101158 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 1.8 24 1 M101181 Silent Partner Aluminized
5.0 10.0 5.0 127 254 127 1.8 25 1 M101263 Freightliner only
5.0 11.0 5.0 127 279 127 1.5 20 1 M110849
C-12 395 to 430 4.0 9.0 5.0 102 229 127 2.1 28 1 M090781
5.0 9.0 5.0 127 229 127 1.8 24 1 M090074
5.0 9.0 5.0 127 229 127 0.9 13 1 M090535 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 0.9 13 1 M100463 Low backpressure, off-hwy
5.0 10.0 5.0 127 254 127 1.9 25 1 M100465 Best value, most popular
5.0 10.0 5.0 127 254 127 2.0 27 1 M100580 OE replacement
5.0 10.0 5.0 127 254 127 2.1 29 1 M100807 60” (1524mm) Long Body
5.0 10.0 5.0 127 254 127 1.6 21 1 M100944 OE replacement for higher HP
5.0 10.0 5.0 127 254 127 1.9 26 1 M101158 Silent Partner Stainless
5.0 10.0 5.0 127 254 127 1.9 26 1 M101181 Silent Partner Aluminized
5.0 10.0 5.0 127 254 127 2.0 27 1 M101263 Freightliner only
5.0 11.0 5.0 127 279 127 1.6 21 1 M110849
88 • Exhaust Product Guide donaldsonfilters.com
