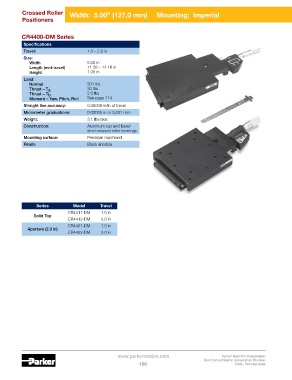

Page 108 - Parker - Daedal manually driven positioning slides and stages
P. 108
Crossed Roller Width: 5.00” (127,0 mm) Mounting: Imperial
Positioners
CR4400-DM Series
Specifications
Travel: 1.0 – 2.0 in
Size:
Width 5.00 in
Length (mid-travel) 11.28 – 14.16 in
Height 1.00 in
Load:
Normal 201 lbs
Thrust – T a 30 lbs
b
Thrust – T 2.0 lbs
Moment – Yaw, Pitch, Roll See page 114
Straight line accuracy: 0.00008 in/in of travel
Micrometer graduations: 0.00005 in or 0,001 mm
Weight: 3.1 lbs/axis
Construction: Aluminum top and base/
steel crossed roller bearings
Mounting surface: Precision machined
Finish: Black anodize
Series Model Travel
CR4411-DM 1.0 in
Solid Top
CR4412-DM 2.0 in
CR4451-DM 1.0 in
Aperture (2.0 in)
CR4452-DM 2.0 in
