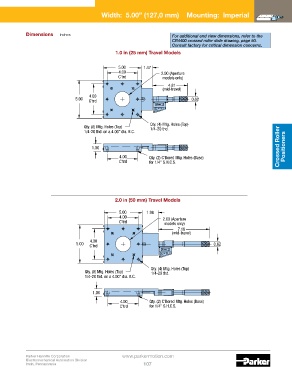

Page 109 - Parker - Daedal manually driven positioning slides and stages

Width: 5.00” (127,0 mm) Mounting: Imperial

Dimensions Inches For additional end view dimensions, refer to the
CR4400 crossed roller slide drawing, page 50.
Consult factory for critical dimension concerns.
1.0 in (25 mm) Travel Models

5.00 1.47
4.00 2.00 (Aperture
C’trd models only)
4.81
(mid-travel)
4.00
5.00 C’trd 0.62
0.50000
OFF HOLD MODE
in/mm SET
Qty. (4) Mtg. Holes (Top)
Qty. (8) Mtg. Holes (Top) 1/4-20 thd.
1/4-20 thd. on a 4.00” dia. B.C.

1.00 Crossed Roller Positioners

4.00 Qty. (2) C'Bored Mtg. Holes (Base)
C’trd for 1/4" S.H.C.S.

2.0 in (50 mm) Travel Models

5.00 1.98
4.00
C’trd 2.00 (Aperture
models only)
7.18
(mid-travel)
4.00
5.00 0.62
C’trd
0.50000
OFF HOLD MODE
SET
in/mm
Qty. (4) Mtg. Holes (Top)
Qty. (8) Mtg. Holes (Top) 1/4-20 thd.
1/4-20 thd. on a 4.00” dia. B.C.

1.00
4.00 Qty. (2) C'Bored Mtg. Holes (Base)
C’trd for 1/4" S.H.C.S.
