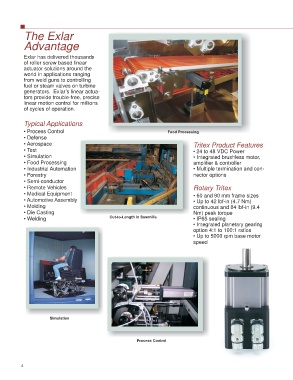

The Exlar
Advantage

Exlar has delivered thousands
of roller screw based linear
actuator solutions around the
world in applications ranging
from weld guns to controlling
fuel or steam valves on turbine
generators. Exlar’s linear actua-
tors provide trouble-free, precise
linear motion control for millions
of cycles of operation.

Typical Applications

• Process Control Food Processing
• Defense
• Aerospace Tritex Product Features
• Test • 24 to 48 VDC Power
• Simulation • Integrated brushless motor,
• Food Processing amplifi er & controller
• Industrial Automation • Multiple termination and con-
• Forestry nector options
• Semi-conductor
• Remote Vehicles Rotary Tritex
• Medical Equipment • 60 and 90 mm frame sizes
• Automotive Assembly • Up to 42 lbf-in (4.7 Nm)
• Molding continuous and 84 lbf-in (9.4
• Die Casting Nm) peak torque
• Welding Cut-to-Length in Sawmills • IP65 sealing
• Integrated planetary gearing
option 4:1 to 100:1 ratios
• Up to 5000 rpm base motor
speed

Simulation

Process Control
