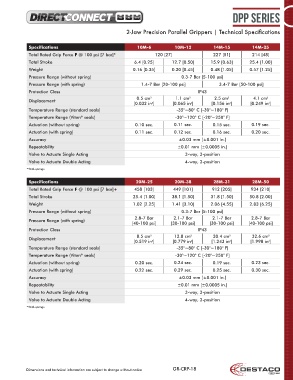

2-Jaw Precision Parallel Grippers | Technical Specifications
Specifications 10M-6 10M-12 14M-15 14M-25
Total Rated Grip Force F @ 100 psi [7 bar]* 120 [27] 227 [51] 214 [48]
Total Stroke 6.4 [0.25] 12.7 [0.50] 15.9 [0.63] 25.4 [1.00]
Weight 0.16 [0.35] 0.20 [0.45] 0.48 [1.05] 0.57 [1.25]
Pressure Range (without spring) 0.3-7 Bar [5-100 psi]
Pressure Range (with spring) 1.4-7 Bar [20-100 psi] 3.4-7 Bar [50-100 psi]
Protection Class IP43
0.5 cm 1.1 cm 2.5 cm 4.1 cm
3
3
3
3
Displacement
[0.032 in ] [0.065 in ] [0.156 in ] [0.249 in ]
3
3
3
3
Temperature Range (standard seals) -35°~80° C [-30°~180° F]
Temperature Range (Viton seals) -30°~120° C [-20°~250° F]
®
Actuation (without spring) 0.10 sec. 0.11 sec. 0.15 sec. 0.19 sec.
Actuation (with spring) 0.11 sec. 0.12 sec. 0.16 sec. 0.20 sec.
Accuracy ±0.03 mm [±0.001 in.]
Repeatability ±0.01 mm [±0.0005 in.]
Valve to Actuate Single Acting 3-way, 2-position
Valve to Actuate Double Acting 4-way, 2-position
*With springs
Specifications 20M-25 20M-38 28M-31 28M-50
Total Rated Grip Force F @ 100 psi [7 bar]+ 458 [103] 449 [101] 912 [205] 934 [210]
Total Stroke 25.4 [1.00] 38.1 [1.50] 31.8 [1.50] 50.8 [2.00]
Weight 1.02 [2.25] 1.41 [3.10] 2.06 [4.55] 2.83 [6.25]
Pressure Range (without spring) 0.3-7 Bar [5-100 psi]
2.8-7 Bar 2.1-7 Bar 2.1-7 Bar 2.8-7 Bar
Pressure Range (with spring)
[40-100 psi] [30-100 psi] [30-100 psi] [40-100 psi]
Protection Class IP43
8.5 cm 12.8 cm 20.4 cm 32.6 cm
3
3
3
3
Displacement
[0.519 in ] [0.779 in ] [1.243 in ] [1.998 in ]
3
3
3
3
Temperature Range (standard seals) -35°~80° C [-30°~180° F]
®
Temperature Range (Viton seals) -30°~120° C [-20°~250° F]
Actuation (without spring) 0.20 sec. 0.24 sec. 0.19 sec. 0.23 sec.
Actuation (with spring) 0.22 sec. 0.29 sec. 0.25 sec. 0.30 sec.
Accuracy ±0.03 mm [±0.001 in.]
Repeatability ±0.01 mm [±0.0005 in.]
Valve to Actuate Single Acting 3-way, 2-position
Valve to Actuate Double Acting 4-way, 2-position
*With springs
Dimensions and technical information are subject to change without notice GR-CRP-18
