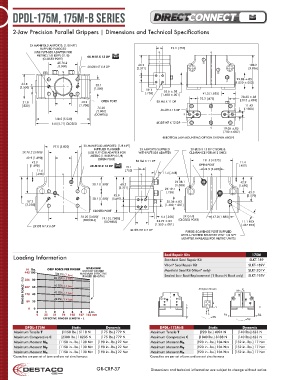

DPDL-175M, 175m-B Series M1 M5 M3
M3
M100
M5
2-Jaw Precision Parallel Grippers | Dimensions and Technical Specifications
2X MANIFOLD AIRPORTS: [1/8 NPT]
SUPPLIED PLUGGED 19.1 [.750]
(USE PLFT-028 ADAPTER FOR
METRIC [1/8 BSPP] G1/8) 4X M10 X 13 DP M10
M10
(CLOSED PORT)
2X 76.2
[3.000] 2X Ø8 H7 X 8 DP 60.2 100.2
[2.371] [3.896]
22.86 ±.05
64.8 38.1 [1.850 ±.002]
[2.550] [1.500] 19.1
[.750] 35.6 ±.03 41.3 [1.625]
[1.400 ±.001]
20.65 ±.03
22.2 [.875] [.813 ±.001]
21.0 43.2 OPEN PORT 8X M6 X 11 DP
[.825] [1.700] 11.43
76.20 [.4500]
[3.000] 4X M8 X 13 DP
(DOWELS)
140.5 [5.530]
145 [5.71] CLOSED 4X Ø5 H7 X 12 DP
19.05 ±.05
[.750 ±.002]
-B BOTTOM JAW MOUNTING OPTION SHOWN ABOVE
97.0 [3.820] 2X MANIFOLD AIRPORTS: [1/8 NPT]
SUPPLIED PLUGGED 2X AIRPORTS SUPPLIED 2X Ø20 X 13 DP C’BORE &
2X 76.2 [3.000] (USE PLFT-028 ADAPTER FOR WITH PLFT-028 ADAPTER CLEARANCE FOR M12 SHCS
METRIC [1/8 BSPP] G1/8)
42.9 [1.690] (OPEN PORT)
42.9 8X M6 X 11 DP 111.1 [4.375] 11.4
M10
[1.690] 4X M10 X 13 DP M10 19.1 OPEN PORT [.450]
11.4 [.750] 42.9 [1.690]
[.450] 11.4 [.448]
2X 38.1 42.9
38.1 [1.500] 60.2 [1.500] [1.690]
[2.371] 2X 19.1
[.750] 65.3
93.9 [2.570]
38.1 [1.500] [3.697]
57.2 35.56 ±.03
[2.250] [1.400 ±.001]
CLOSED PORT
76.20 [3.000] 19.10 [.7500] 6.4 [.250] 2X G1/8 47.8 [1.880]
(DOWELS) (DOWELS) 34.29 ±.03 (CLOSED PORT) 11.1 HEX
2X Ø8 H7 X 6 DP [1.350 ±.001] [.437 HEX]
4X Ø5 H7 X 7 DP
PURGE-SCAVENGE PORT SUPPLIED
WITH A FILTERED BREATHER VENT 1/8 NPT
(ADAPTER AVAILABLE FOR METRIC UNITS)
175M
Loading Information Seal Repair Kits SLKT-189
Standard Seal Repair Kit
Viton Seal Repair Kit SLKT-189V
®
N lbs. GRIP FORCE PER FINGER WARNING! Manifold Seal Kit (Viton only) SLKT-201V
®
DO NOT EXCEED
445 100 MAXIMUM EFFECTIVE
100 PSI [7 bar]
FINGER LENGTHS Sealed Jaw Boot Replacement (1 Buna-N Boot only) SLKT-195V
80 PSI [5.5 bar]
FINGER FORCE - F/2 267 60 60 PSI [4.1 bar] -B Option Shown Mz Z
356
80
40 PSI [2.7 bar]
40
178
20 PSI [1.4 bar]
20
89
L
0 0 Y X
0 1 2 3 4 5 6 in.
0 25 51 76 102 127 152 mm T C F/2 F/2
EFFECTIVE FINGER LENGTH - L Mx My
DPDL-175M Static Dynamic DPDL-175M-B Static Dynamic
Maximum Tensile T [1150 lbs.] 5118 N [175 lbs.] 779 N Maximum Tensile T [920 lbs.] 4094 N [140 lbs.] 623 N
Maximum Compressive C [2300 lbs.] 10235 N [175 lbs.] 779 N Maximum Compressive C [1840 lbs.] 8188 N [140 lbs.] 623 N
Maximum Moment Mx [1150 in.-lbs.] 130 Nm [190 in.-lbs.] 22 Nm Maximum Moment Mx [920 in.-lbs.] 104 Nm [152 in.-lbs.] 17 Nm
Maximum Moment My [1150 in.-lbs.] 130 Nm [190 in.-lbs.] 22 Nm Maximum Moment My [920 in.-lbs.] 104 Nm [152 in.-lbs.] 17 Nm
Maximum Moment Mx [1150 in.-lbs.] 130 Nm [190 in.-lbs.] 22 Nm Maximum Moment Mx [920 in.-lbs.] 104 Nm [152 in.-lbs.] 17 Nm
† Capacities are per set of jaws and are not simultaneous † Capacities are per set of jaws and are not simultaneous
GR-CRP-37 Dimensions and technical information are subject to change without notice
