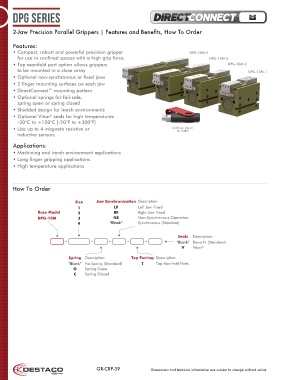

2-Jaw Precision Parallel Grippers | Features and Benefits, How To Order
Features:
• Compact, robust and powerful precision gripper DPG-10M-4
for use in confined spaces with a high grip force. DPG-10M-3
• Top manifold port option allows grippers DPG-10M-2
to be mounted in a close array DPG-10M-1
• Optional non-synchronous or fixed jaws
• 2 finger mounting surfaces on each jaw
• DirectConnect™ mounting pattern
• Optional springs for fail-safe,
spring open or spring closed
• Shielded design for harsh environments
®
• Optional Viton seals for high temperatures
-30°C to +150°C [-20°F to +300°F]
• Use up to 4 magneto resistive or (USB key shown
for scale)
inductive sensors
Applications:
• Machining and harsh environment applications
• Long finger gripping applications
• High temperature applications
How To Order
Size Jaw Synchronization Description
1 LF Left Jaw Fixed
Base Model 2 RF Right Jaw Fixed
DPG-10M 3 NS Non-Synchronous Operation
4 “Blank” Synchronous (Standard)

Seals Description
- - - - - “Blank” Buna-N (Standard)
V Viton ®
Spring Description Top Porting Description
“Blank” No Spring (Standard) T Top Manifold Ports
O Spring Open
C Spring Closed

GR-CRP-39 Dimensions and technical information are subject to change without notice
