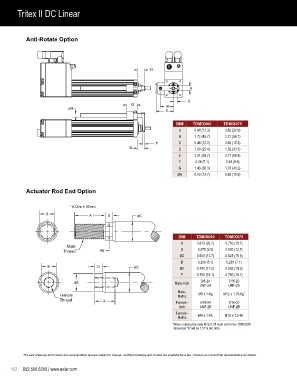

Tritex II DC Linear

Anti-Rotate Option

D

A

C
G
H B
E

DIM TDM/X060 TDM/X075
A 0.68 (17.3) 0.82 (20.9)
B 1.72 (43.7) 2.21 (56.1)
F C 0.48 (12.2) 0.60 (15.2)
D D 1.00 (25.4) 1.32 (33.5)
E 2.31 (58.7) 2.71 (68.8)
F 0.28 (7.1) 0.39 (9.9)
G 1.43 (36.3) 1.70 (43.2)
ØH 0.50 (12.7) 0.63 (15.9)

Actuator Rod End Option

DIM TDM/X060 TDM/X075
A 0.813 (20.7) 0.750 (19.1)
Male
Thread B 0.375 (9.5) 0.500 (12.7)
ØC 0.500 (12.7) 0.625 (15.9)
D 0.200 (5.1) 0.281 (7.1)
ØE 0.440 (11.2) 0.562 (14.3)
F 0.750 (19.1) 0.750 (19.1)
3/8-24 7/16-20
Male–Inch
UNF-2A UNF-2A
Male–
Female Metric M8 x 1-6g M12 x 1.75-6g *
Thread
Female– 5/16-24 7/16-20
Inch UNF-2B UNF-2B
Female–
Metric M8 x 1-6h M10 x 1.5-6h
* When ordering the male M12x1.75 main rod for the TDM/X075
dimension “A” will be 1.57 in (40 mm)

Pre-sale drawings and models are representative and are subject to change. Certified drawings and models are available for a fee. Consult your local Exlar representative for details.
