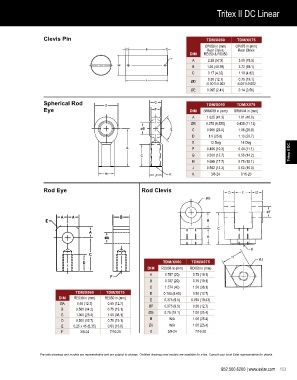

Tritex II DC Linear

Clevis Pin TDM/X060 TDM/X075
CP050 in (mm) CP075 in (mm)
Rear Clevis, Rear Clevis
DIM RE050 & RC050
A 2.28 (57.9) 3.09 (78.5)
B 1.94 (49.28) 2.72 (69.1)
C 0.17 (4.32) 1.19 (4.82)
0.50 (12.7) 0.75 (19.1)
ØD -0.001/-0.002 -0.001/-0.002
ØE 0.095 (2.41) 0.14 (3.56)

Spherical Rod TDM/X060 TDM/X075
Eye DIM SRM038 in (mm) SRM044 in (mm)

A 1.625 (41.3) 1.81 (46.0)
ØB 0.375 (9.525) 0.438 (11.13)
C 0.906 (23.0) 1.06 (26.9)
D 1.0 (25.6) 1.13 (28.7)
E 12 Deg 14 Deg
F 0.406 (10.3) 0.44 (11.1)
G 0.500 (12.7) 0.56 (14.2) Tritex II DC
H 0.688 (17.7) 0.75 (19.1)
J 0.562 (14.3) 0.63 (16.0)
K 3/8-24 7/16-20

Rod Eye Rod Clevis

TDM/X060 TDM/X075
DIM RC038 in (mm) RC050 in (mm)
A 0.787 (20) 0.75 (19.1)
B 0.787 (20) 0.75 (19.1)
C 1.574 (40) 1.50 (38.1)
TDM/X060 TDM/X075 D 0.183 (4.65) 0.50 (12.7)
DIM RE038 in (mm) RE050 in (mm) E 0.375 (9.5) 0.765 (19.43)
ØA 0.50 (12.7) 0.50 (12.7) ØF 0.375 (9.5) 0.50 (12.7)
B 0.560 (14.2) 0.75 (19.1)
C 1.000 (25.4) 1.50 (38.1) ØG 0.75 (19.1) 1.00 (25.4)
D 0.500 (12.7) 0.75 (19.1) H N/A 1.00 (25.4)
E 0.25 x 45 (6.35) 0.63 (15.9) ØJ N/A 1.00 (25.4)
F 3/8-24 7/16-20 K 3/8-24 7/16-20

Pre-sale drawings and models are representative and are subject to change. Certified drawings and models are available for a fee. Consult your local Exlar representative for details.
