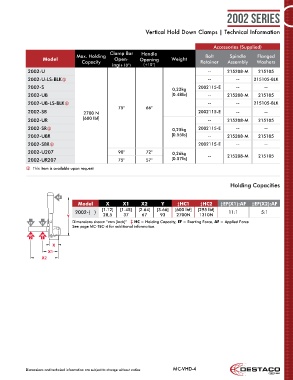

MC-VHD-4
2002 Series
Vertical Hold Down Clamps | Technical Information
Accessories (Supplied)
Clamp Bar Handle
Max. Holding Bolt Spindle Flanged
Model Open- Opening Weight
Capacity Retainer Assembly Washers
ing(+10°) (+10°)
2002-U -- 215208-M 215105
2002-U-LS-BLK -- -- 215105-BLK
2002-S 0,22kg 2002115-E -- --
2002-UB [0.48lb] -- 215208-M 215105
2002-UB-LS-BLK -- -- 215105-BLK
75° 66°
2002-SB 2700 N 2002115-E -- --
2002-UR [600 lbf] -- 215208-M 215105
2002-SR 0,25kg 2002115-E -- --
2002-UBR [0.55lb] -- 215208-M 215105
2002-SBR 2002115-E -- --
2002-U207 90° 72° 0,26kg
2002-UR207 75° 57° [0.57lb] -- 215208-M 215105
This item is available upon request
Holding Capacities
AF
Model X X1 X2 Y ‡HC1 ‡HC2 ‡EF(X1):AF ‡EF(X2):AF
[1.12] [1.45] [2.64] [3.66] [600 lbf] [295 lbf]
2002-( ) 11:1 5 :1
Y 28,5 37 67 93 2700N 1310N
EF EF Dimensions shown “mm [inch]” ‡ HC = Holding Capacity, EF = Exerting Force, AF = Applied Force
See page MC-TEC-4 for additional information.
HC HC
2 1
X
X1
X2
Dimensions and technical information are subject to change without notice MC-VHD-4
