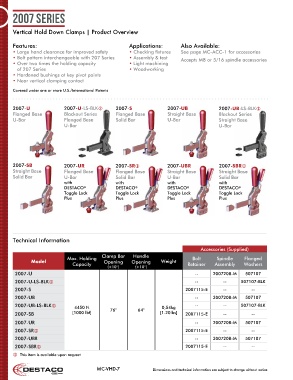

2007 Series


      Vertical Hold Down Clamps | Product Overview


      Features:                                        Applications:         Also Available:
      • Large hand clearance for improved safety       • Checking fixtures   See page MC-ACC-1 for accessories
      • Bolt pattern interchangeable with 207 Series   • Assembly & test     Accepts M8 or 5/16 spindle accessories
      •  Over two times the holding capacity           • Light machining
        of 207 Series                                  • Woodworking
      • Hardened bushings at key pivot points
      • Near vertical clamping contact

        Covered under one or more U.S./International Patents



      2007-U                2007-U-LS-BLK       2007-S                2007-UB              2007-UB-LS-BLK
      Flanged Base          Blackout Series      Flanged Base          Straight Base        Blackout Series
      U-Bar                 Flanged Base         Solid Bar             U-Bar                Straight Base
                            U-Bar                                                           U-Bar








      2007-SB               2007-UR              2007-SR              2007-UBR              2007-SBR
      Straight Base         Flanged Base         Flanged Base          Straight Base         Straight Base
      Solid Bar             U-Bar                Solid Bar             U-Bar                 Solid Bar
                            with                 with                  with                  with
                            DESTACO ®            DESTACO  ®            DESTACO ®             DESTACO ®
                            Toggle Lock          Toggle Lock           Toggle Lock           Toggle Lock
                            Plus                 Plus                  Plus                  Plus









      Technical Information
                                                                                     Accessories (Supplied)
                                            Clamp Bar    Handle
                             Max. Holding                                        Bolt       Spindle    Flanged
              Model                         Opening     Opening     Weight
                               Capacity                                        Retainer    Assembly    Washers
                                              (+10°)      (+10°)
       2007-U                                                                     --      2007208-M     507107
       2007-U-LS-BLK                                                             --          --      507107-BLK
       2007-S                                                                  2007115-E      --          --
       2007-UB                                                                    --      2007208-M     507107
       2007-UB-LS-BLK          4450 N                               0,54kg       --          --      507107-BLK
       2007-SB                 [1000 lbf]      76°         64°      [1.20lbs]  2007115-E      --          --
       2007-UR                                                                    --      2007208-M     507107

       2007-SR                                                                2007115-E      --          --
       2007-UBR                                                                   --      2007208-M     507107

       2007-SBR                                                               2007115-E      --          --
       This item is available upon request

                                         MC-VHD-7                Dimensions and technical information are subject to change without notice
