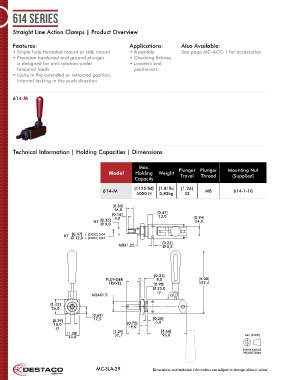

Page 114 - Destaco - Clamping Technology

614 Series

Straight Line Action Clamps | Product Overview

Features: Applications: Also Available:
• Single hole threaded mount or side mount • Assembly See page MC-ACC-1 for accessories
• Precision hardened and ground plunger • Checking fixtures
is designed for anti-rotation under • Locaters and
torsional loads positioners
• Locks in the extended or retracted position,
internal locking in the push direction

614-M

Technical Information | Holding Capacities | Dimensions
614_M
Max.
Model Holding Weight Plunger Plunger Mounting Nut
Thread
(Supplied)
Travel
Capacity
[1125 lbf] [1.81lb] [1.26]
614-M M8 614-1-10
5000 N 0,82kg 32
[0.63]
16,0
[0.16] [0.47]
12,0
4,0 [0.94]
H7 [0.35] 24,0
Ø 9,0
h7 [0.47] + [0.002] 0,04
Ø 12,0 + [0.001] 0,03
[0.22]
M8X1.25 Ø 5,5

[0.31]
PLUNGER 8,0 [6.00]
TRAVEL [0.98] 152,4
Ø 25,0
f7
M24X1.5
[1.42]
36,0
[0.69]
[0.39] 17,5 [0.20]
5,0
10,0 [0.75]
19,0
f7 [3.66]
[1.38] [1.29] 93,0 mm [INCH] mm [INCH]
32,7
35,0
THIRD ANGLE FIRST ANGLE
PROJECTION PROJECTION

MC-SLA-29 Dimensions and technical information are subject to change without notice
