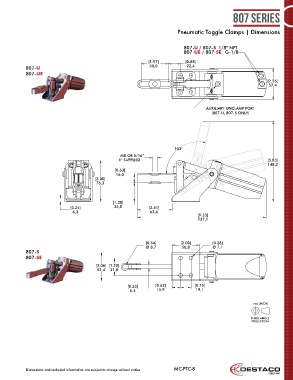

807 Series

807-U, 807-UE, 807-S, 807-SE
Pneumatic Toggle Clamps | Dimensions

807-U / 807-S 1/8" NPT
807-UE / 807-SE G-1/8

[1.97] [0.88]
807-U 50,0 22,4
807-UE
[2.26]
57,4

AUXILIARY UNCLAMP PORT
(807-U, 807-S ONLY)

103°
M8 OR 5/16"
IF SUPPLIED [5.83]
148,2
[0.63]
16,0
[3.00]
76,3

[1.38]
[0.25] 35,0 [2.51]
6,3 63,6
[9.33]
237,1

[0.34] [2.00] [0.28]
Ø 8,7 50,8 Ø 7,1
807-S
807-SE
[2.06] [1.25]
52,4 31,8

[0.25] [0.63] [0.75]
6,4 15,9 19,1

mm [INCH] mm [INCH]

THIRD ANGLE FIRST ANGLE
PROJECTION PROJECTION

Dimensions and technical information are subject to change without notice MC-PTC-8
