P. 191

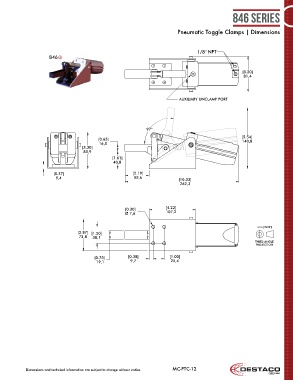

846 Series
846
Pneumatic Toggle Clamps | Dimensions
1/8" NPT
846
[3.20]
81,4
AUXILIARY UNCLAMP PORT
97°
[5.54]
[0.63] 140,8
16,0
[3.30]
83,9
[1.61]
40,8
[0.37] [2.19]
9,4 55,6 [10.33]
262,3
[0.30] [4.22]
Ø 7,6 107,2
mm [INCH] mm [INCH]
[2.87] [1.50]
72,8 38,1
THIRD ANGLE FIRST ANGLE
PROJECTION PROJECTION
[0.75] [0.38] [1.00]
19,1 9,7 25,4
Dimensions and technical information are subject to change without notice MC-PTC-12
