P. 189

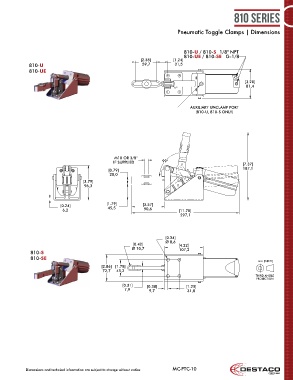

810 Series
Pneumatic Toggle Clamps | Dimensions
810-U, 810-UE, 810-S, 810-SE
810-U / 810-S 1/8" NPT
810-UE / 810-SE G-1/8
[2.35] [1.24]
810-U 59,7 31,5
810-UE
[3.20]
81,4
AUXILIARY UNCLAMP PORT
(810-U, 810-S ONLY)
M10 OR 3/8"
IF SUPPLIED 99° [7.37]
[0.79] 187,1
20,0
[3.79]
96,3
[1.79] [3.57]
[0.24]
6,2 45,5 90,6 [11.70]
297,1
[0.34]
Ø 8,6
[0.42] [4.22]
Ø 10,7 107,2
810-S
810-SE
mm [INCH] mm [INCH]
[2.86] [1.78]
72,7 45,2
THIRD ANGLE FIRST ANGLE
PROJECTION PROJECTION
[0.31] [0.38] [1.25]
7,9 9,7 31,8
Dimensions and technical information are subject to change without notice MC-PTC-10
