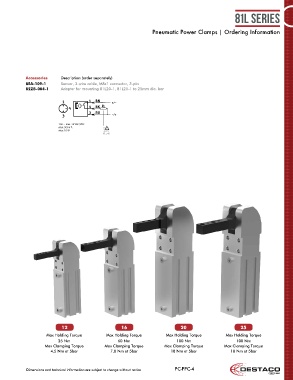

P. 267
81L Series
Pneumatic Power Clamps | Ordering Information
Accessories Description (order separately)
8EA-109-1 Sensor, 3-wire cable, M8x1 connector, 3-pin
82ZB-004-1 Adapter for mounting 81L20-1, 81L25-1 to 25mm dia. bar
12 16 20 25
Max Holding Torque Max Holding Torque Max Holding Torque Max Holding Torque
25 Nm 60 Nm 100 Nm 100 Nm
Max Clamping Torque Max Clamping Torque Max Clamping Torque Max Clamping Torque
4,5 Nm at 5bar 7,0 Nm at 5bar 18 Nm at 5bar 18 Nm at 5bar
Dimensions and technical information are subject to change without notice PC-PPC-4
