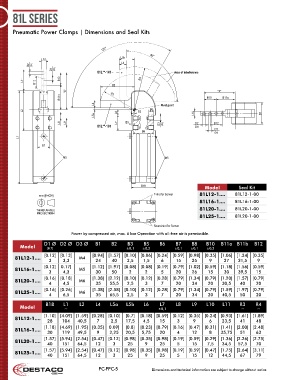

81L Series

Pneumatic Power Clamps | Dimensions and Seal Kits

120°
L5b 90°
L10
D2 (2x) L4
D1 (2x) 81L**-141 Area of interference

L11 B12 B10 B2 R4

"X" R3 "X"
B11b B10 B11a
L4 Pivot point
L2 L6 B3 B6 L10
L5a B1
L8 L9 81L**-101 L7 B5 D3 (8x) (2x) B12
D2
D1
B8 (2x)
L1
B7

M5 M5

B18 Model Seal Kit
T-slot for Sensor 81L12-1.... 81L12-1-00
mm [INCH] mm [INCH]
81L16-1.... 81L16-1-00
THIRD ANGLE FIRST ANGLE 81L20-1.... 81L20-1-00
PROJECTION PROJECTION
81L25-1.... 81L20-1-00
Round-slot for Sensor
Power by compressed air, max. 6 bar Operation with oil-free air is permissible.

D1 Ø D2 Ø D3 Ø B1 B2 B3 B5 B6 B7 B8 B10 B11a B11b B12
Model [H7] ±0,1 ±0,2 ±0,1 ±0,1 ±0,2
[0.12] [0.13] [0.94] [1.57] [0.10] [0.06] [0.24] [0.59] [0.98] [0.35] [1.06] [1.24] [0.35]
81L12-1.... M4
3 3,3 24 40 2,5 1,5 6 15 25 9 27 31,5 9
[0.12] 0.17] [1.12] [1.97] [0.08] [0.08] [0.19] [0.79] [1.02] [0.59] [1.18] [1.56] [0.59]
81L16-1.... M5
3 4,3 30 50 2 2 5 20 26 15 30 39,5 15
[0.16] [0.18] [1.38] [2.12] [0.10] [0.12] [0.28] [0.79] [1.34] [0.79] [1.20] [1.57] [0.79]
81L20-1.... M6
4 4,5 35 55,5 2,5 3 7 20 34 20 30,5 40 20
[0.16] [0.26] [1.38] [2.58] [0.10] [0.12] [0.28] [0.79] [1.34] [0.79] [1.59] [1.97] [0.79]
81L25-1.... 4 6,5 M6 35 65,5 2,5 3 7 20 34 20 40,5 50 20
B18 L1 L2 L4 L5a L5b L6 L7 L8 L9 L10 L11 R3 R4
Model ~ ±0,1 ~ ~

[1.10] [4.09] [1.59] [0.28] [0.10] [0.7] [0.18] [0.59] [0.12] [0.35] [0.24] [0.93] [1.61] [1.89]
81L12-1....
28 104 40,5 7 2,5 17,5 4,5 15 3 9 6 23,5 41 48
[1.18] [4.69] [1.95] [0.35] 0.09] [0.8] [0.23] [0.79] [0.16] [0.47] [0.31] [1.41] [2.00] [2.48]
81L16-1....
30 119 49,5 9 2,25 20,5 5,75 20 4 12 8 35,75 51 63
[1.57] [5.94] [2.54] [0.47] [0.12] [0.98] [0.35] [0.98] [0.19] [0.59] [0.29] [1.36] [2.26] [2.75]
81L20-1....
40 151 64,5 12 3 25 9 25 5 15 7,5 34,5 57,5 70
[1.57] [5.94] [2.54] [0.47] [0.12] [0.98] [0.35] [0.98] [0.19] [0.59] [0.47] [1.75] [2.64] [3.11]
81L25-1.... 40 151 64,5 12 3 25 9 25 5 15 12 44,5 67 79

PC-PPC-5 Dimensions and technical information are subject to change without notice
