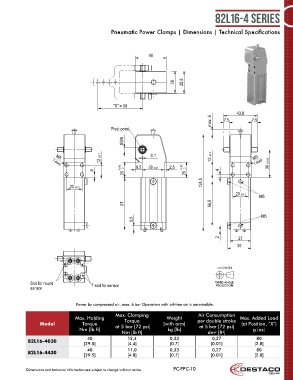

82L16-4 Series

Pneumatic Power Clamps | Dimensions | Technical Specifications

40

28 28,8

"X" = 58
43,8
max. 6 7,5 7,5

Pivot point
SW6

±0,1 0,1 ±0,1
M5 M5
12 12 7 deep ±0,05
7 deep
0,05 9,5 28 ±0,1 2,5 +0,05 36
4 + 0 0 4
20 20
124,5
20 ±0,1
20 ±0,1
M5
67 56,5

M5
5,5

2 27
30

mm [INCH] mm [INCH]

Slot for round T-slot for sensor THIRD ANGLE FIRST ANGLE
PROJECTION
PROJECTION
sensor

Power by compressed air, max. 6 bar Operation with oil-free air is permissible.
Max. Clamping Air Consumption
Max. Holding Weight Max. Added Load
Torque
Model Torque at 5 bar [72 psi] [with arm] per double stroke (at Position‚ “X”)
at 5 bar [72 psi]
Nm [lb ft] kg [lb] g [oz]
Nm [lb ft] dm [ft ]
3
3
40 12,4 0,33 0,27 80
82L16-4030
[29.5] [4.4] [0.7] [0.01] [2.8]
40 11,0 0,33 0,27 80
82L16-4430
[29.5] [4.8] [0.7] [0.01] [2.8]
Dimensions and technical information are subject to change without notice PC-PPC-10
