P. 276

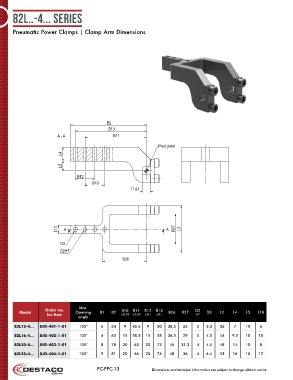

82L..-4... Series
Pneumatic Power Clamps | Clamp Arm Dimensions
B2
B13
A - A B11
Pivot point
L4
L5
B12
B10
B1
L10 A A B27 L2
D3
D2H7
B26
Max.
Order no. B10 B11 B12 B13 D2
Model Opening B1 B2 B26 B27 D3 L2 L4 L5 L10
for Arm angle ±0,02 ±0,02 ±0,1 ±0,1 H7
82L12-4… 8JG-401-1-01 105° 6 54 9 45.5 9 50 38,5 24 3 3.3 36 7 10 6
82L16-4… 8JG-402-1-01 105° 6 63 15 50.5 15 58 36,5 29 3 4.5 44 9.5 10 10
82L20-4… 8JG-403-1-01 105° 8 78 20 63 20 73 45 31,2 4 4.5 48 14 10 8
82L25-4… 8JG-404-1-01 105° 9 81 20 66 20 76 48 36 4 6.4 53 16 10 12
PC-PPC-13 Dimensions and technical information are subject to change without notice
