MC-HHD-4
2013 Series

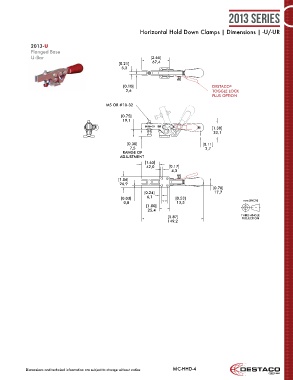

Horizontal Hold Down Clamps | Dimensions | -U/-UR

2013-U
Flanged Base
U-Bar [2.65]
[0.21] 67,4
5,3

[0.10] DESTACO
®
2,6 TOGGLE LOCK
PLUS OPTION
M5 OR #10-32

[0.75]
19,1
[1.30]
33,1

[0.30] [0.11]
7,5 2,7
RANGE OF
ADJUSTMENT
[1.65]
42,0 [0.17]
4,3
[1.06]
26,9
[0.70]
[0.24] 17,7
[0.03] 6,1 [0.53]
0,8 13,5 mm [INCH] mm [INCH]
[1.00]
25,4
[5.87] THIRD ANGLE FIRST ANGLE
PROJECTION
PROJECTION
149,2

Dimensions and technical information are subject to change without notice MC-HHD-4
