Page 59 - Destaco - Clamping Technology
P. 59
MC-HHD-6
2017 Series

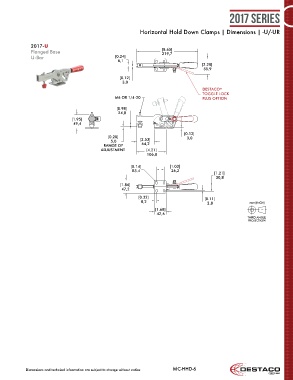

Horizontal Hold Down Clamps | Dimensions | -U/-UR
2017-U
Flanged Base [8.65]
219,7
U-Bar [0.24]
6,1
[2.20]
55,9
[0.12]
3,0
DESTACO
®
TOGGLE LOCK
M6 OR 1/4-20 PLUS OPTION
[0.98]
24,8
[1.95]
49,4
[0.12]
[0.20] 3,0
5,0 [2.53]
RANGE OF 64,2
ADJUSTMENT [4.21]
106,8
[0.14] [1.03]
R3.4 26,2
[1.21]
30,8
[1.86]
47,2
[0.32] [0.11]
8,2 2,8 mm [INCH] mm [INCH]
[1.68]
42,6
THIRD ANGLE FIRST ANGLE
PROJECTION PROJECTION
Dimensions and technical information are subject to change without notice MC-HHD-6
