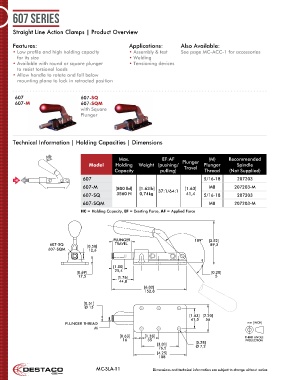

607 Series

Straight Line Action Clamps | Product Overview

Features: Applications: Also Available:
• Low profile and high holding capacity • Assembly & test See page MC-ACC-1 for accessories
for its size • Welding
• Available with round or square plunger • Tensioning devices
to resist torsional loads
• Allow handle to rotate and fall below
mounting plane to lock in retracted position

607 607-SQ
607-M 607-SQM
with Square
Plunger

Technical Information | Holding Capacities | Dimensions

AF Max. EF:AF Plunger (M) Recommended
Model Holding Weight (pushing/ Travel Plunger Spindle
Capacity pulling) Thread (Not Supplied)
607 607-M / 6-7-SQM 5/16-18 207203
HC EF
607-M [800 lbf] [1.63lb] [1.63] M8 207203-M
607-SQ 3560 N 0,74kg 37:1/64:1 41,4 5/16-18 207203
607-SQM M8 207203-M
HC = Holding Capacity, EF = Exerting Force, AF = Applied Force

PLUNGER 189° [3.52]
607-SQ [0.50] TRAVEL 89,3
607-SQM 12,6

[1.00]
25,4
[0.69] [0.20]
17,5 [1.76] 5
44,8
[6.02]
152,8

[0.51]
Ø 13

[1.63] [2.20]
41,5 56
PLUNGER THREAD mm [INCH] mm [INCH]
M
[0.63] [1.38] THIRD ANGLE FIRST ANGLE
16 35 PROJECTION PROJECTION
[3.01] [0.28]
76,5 Ø 7,2
[4.25]
108

MC-SLA-11 Dimensions and technical information are subject to change without notice
