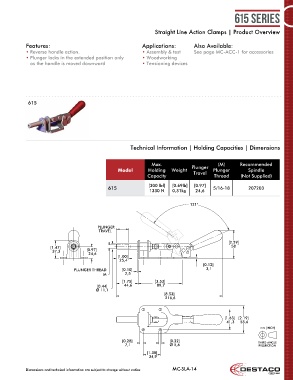

P. 99
615 Series
Straight Line Action Clamps | Product Overview
Features: Applications: Also Available:
• Reverse handle action. • Assembly & test See page MC-ACC-1 for accessories
• Plunger locks in the extended position only • Woodworking
as the handle is moved downward • Tensioning devices
615
Technical Information | Holding Capacities | Dimensions
Max. (M) Recommended
Model 615 Holding Weight Plunger Plunger Spindle
Travel
Capacity Thread (Not Supplied)
[300 lbf] [0.69lb] [0.97]
615 5/16-18 207203
1330 N 0,31kg 24,6
121°
PLUNGER
TRAVEL
[2.29]
[1.47] 58
37,3 [0.97]
24,6
[1.00]
25,4
[0.12]
PLUNGER THREAD [0.10] 3,1
M 2,5
[1.75] [3.53]
[0.44] 44,6 89,7
Ø 11,1
[8.53]
216,6
[1.63] [2.19]
41,3 55,6
mm [INCH] mm [INCH]
[0.28] [0.22] THIRD ANGLE FIRST ANGLE
7,1 Ø 5,6 PROJECTION PROJECTION
[1.38]
34,9
Dimensions and technical information are subject to change without notice MC-SLA-14
