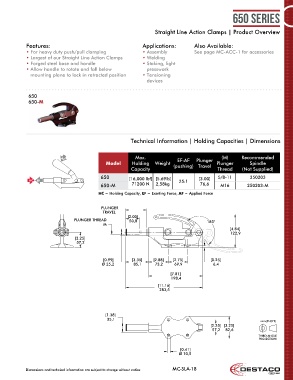

650 Series

Straight Line Action Clamps | Product Overview

Features: Applications: Also Available:
• For heavy duty push/pull clamping • Assembly See page MC-ACC-1 for accessories
• Largest of our Straight Line Action Clamps • Welding
• Forged steel base and handle • Staking, light
• Allow handle to rotate and fall below presswork
mounting plane to lock in retracted position • Tensioning
devices

650
650-M

Technical Information | Holding Capacities | Dimensions

Max. (M) Recommended
AF EF:AF Plunger
Model Holding Weight (pushing) Travel Plunger Spindle
650-M
Capacity Thread (Not Supplied)
650 [16,000 lbf] [5.69lb] [3.00] 5/8-11 250203
HC EF 25:1
650-M 71200 N 2,58kg 76,6 M16 250203-M
HC = Holding Capacity, EF = Exerting Force, AF = Applied Force

PLUNGER
TRAVEL
[2.00]
PLUNGER THREAD 50,8 185°
M
[4.84]
122,9
[2.25]
57,2

[0.99] [3.35] [2.88] [2.75] [0.25]
Ø 25,2 85,1 73,2 69,9 6,4

[7.81]
198,4
[11.16]
283,5

[1.38]
35,1
mm [INCH] mm [INCH]
[2.25] [3.25]
57,2 82,6
THIRD ANGLE FIRST ANGLE
PROJECTION PROJECTION
[0.41]
Ø 10,5

Dimensions and technical information are subject to change without notice MC-SLA-18
