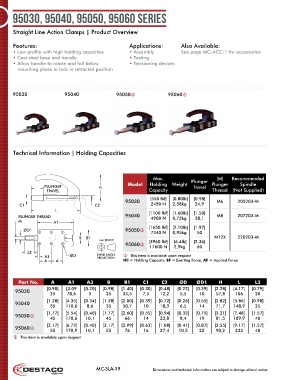

95030, 95040, 95050, 95060 Series

Straight Line Action Clamps | Product Overview

Features: Applications: Also Available:
• Low profile with high holding capacities • Assembly See page MC-ACC-1 for accessories
• Cast steel base and handle • Testing
• Allow handle to rotate and fall below • Tensioning devices
mounting plane to lock in retracted position

95030 95040 95050 95060

95030/95040

Technical Information | Holding Capacities

Max. (M) Recommended
Model Holding Weight Plunger Plunger Spindle
PLUNGER H Travel
TRAVEL Capacity Thread (Not Supplied)

95030 [550 lbf] [0.80lb] [0.98] M6 205203-M
C1 C2 2450 N 2,58kg 24,9
L [1100 lbf] [1.60lb] [1.50]
PLUNGER THREAD 95040 4900 N 0,73kg 38,1 M8 207203-M
M A1
[1650 lbf] [2.10lb] [1.97]
ØD1 95050
7340 N 0,95kg 50
B B1 M12X 220203-M
mm [INCH] mm [INCH] [3960 lbf] [6.4lb] [2.36]
95060 17600 N 2,9kg 60
L3
FIRST ANGLE
 This item is available upon request
A3 ØD THIRD ANGLE PROJECTION
PROJECTION
A A HC = Holding Capacity, EF = Exerting Force, AF = Applied Force

Part No. A A1 A3 B B1 C1 C2 ØD ØD1 H L L3
[0.98] [3.09 [0.20] [0.98] [1.40] [0.30] [0.48] [0.22] [0.39] [2.28] [4.17] [0.79]
95030
25 78,6 5 25 35,5 7,5 12,2 5,5 10 57,8 106 20
[1.38] [4.35] [0.34] [1.38] [2.00] [0.39] [0.72] [0.26] [0.55] [2.82] [5.86] [0.98]
95040
35 110,6 8,6 35 50,7 10 18,3 6,5 14 71,7 148,9 25
[1.77] [5.54] [0.40] [1.77] [2.60] [0.55] [0.94] [0.33] [0.75] [3.21] [7.48] [1.57]
95050
45 170,6 10,1 45 66 14 23,8 8,4 19 81,5 189,9 40
[2.17] [6.73] [0.40] [2.17] [2.99] [0.63] [1.08] [0.41] [0.87] [3.55] [9.17] [1.57]
95060
55 170,9 10,1 55 76 16 27,4 10,5 22 90,2 233 40
 This item is available upon request

MC-SLA-19 Dimensions and technical information are subject to change without notice
