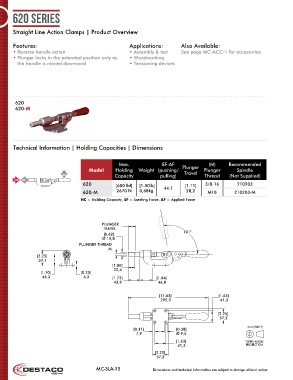

620 Series

Straight Line Action Clamps | Product Overview

Features: Applications: Also Available:
• Reverse handle action • Assembly & test See page MC-ACC-1 for accessories
• Plunger locks in the extended position only as • Woodworking
the handle is moved downward • Tensioning devices

620
620-M

Technical Information | Holding Capacities | Dimensions

Max. 620 EF:AF (M) Recommended
Model Holding Weight (pushing/ Plunger Plunger Spindle
AF Capacity pulling) Travel Thread (Not Supplied)
HC EF
620 [600 lbf] [1.50lb] [1.11] 3/8-16 210203
620-M 2670 N 0,68kg 44:1 28,2 M10 210203-M
HC = Holding Capacity, EF = Exerting Force, AF = Applied Force

PLUNGER
TRAVEL
[0.62] 101°
Ø 15,8
PLUNGER THREAD
M
[2.25]
57,1
[1.00]
25,4
[1.70] [0.25]
43,3 6,3 [1.73] [1.84]
43,9 46,8

[11.63] [1.63]
295,5 41,3

[2.25]
57,2

mm [INCH] mm [INCH]
[0.31] [0.38]
7,9 Ø 9,5
[1.63] THIRD ANGLE FIRST ANGLE
41,3 PROJECTION PROJECTION
[2.25]
57,2

MC-SLA-15 Dimensions and technical information are subject to change without notice
