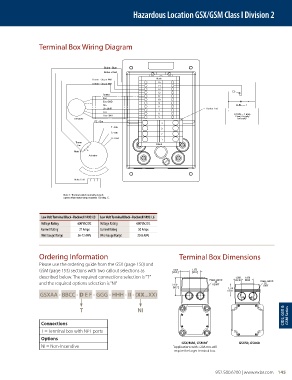

Hazardous Location GSX/GSM Class I Division 2

Terminal Box Wiring Diagram

Brake - Blue
Brake + Red
Therm - Org or Wht Blank
15
Therm - Org or Wht
14
13
12
Shield 11
Exc 10
Exc GND 9 • ________ •
I
________ I
I
I I
Sin 8 ____ ____ ____
Sin GND 7 Barrier End
Cos 6 + -
Cos GND 5 24 Vdc ~ 1 amp
Power Supply
Resolver for brake
PE - Grn
4
T - Blu
3
S - Blk
2
R - Red
1
Therm
Sw. Blank
Note 1
Actuator
Brake Coil
Note 1: Thermal switch normally closed;
opens when stator temp exceeds 130 deg. C.
Low Volt Terminal Block–Rockwell 1492-L3 Low Volt Terminal Block–Rockwell 1492-L6
Voltage Rating 600 VAC/DC Voltage Rating 600 VAC/DC
Current Rating 27 Amps Current Rating 50 Amps
Wire Gauge Range 26-12 AWG Wire Gauge Range 20-8 AWG

Ordering Information Terminal Box Dimensions
Please use the ordering guide from the GSX (page 150) and
GSM (page 153) sections with two callout selections as 1.034 1.375
34.9
26.3
described below. The required connections selection is “T” 1.260 1.970
Power and I/O 32.0 50.0 Power and I/O
and the required options selection is “NI” 2.232 1/2 NPT 2X
2X
56.7 2.170 1 NPT
55.1
GSXAA - BBCC - D E F - GGG - HHH - II - (XX...XX)
CID2, GSX & GSM Series
T NI

Connections
T = Terminal box with NPT ports
Options
GSX/M30, GSM40 * GSX50, GSX60
NI = Non-Incendive * Applications with >20A rms will
require the larger terminal box.

952.500.6200 | www.exlar.com 145
