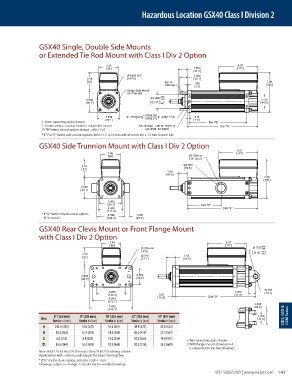

Hazardous Location GSX40 Class I Division 2

GSX40 Single, Double Side Mounts
or Extended Tie Rod Mount with Class I Div 2 Option

3.45 6.97
88 1.650 177
41.9
4.243 B.C. 1.380
3.19 107.8 35.1
81 3/8-16 7.09
UNC-2A .100 180
2.5
Single Side Mount
On This side
+.000
3.900 2.499 -.003 1.750
0
99.1 63.47 -0.08 44.5
+.0000[.00]
3.900 .3750[9.53] -.0005[.01] .438[11.13] .313
99.1 7.9
1. Three mounting styles shown Dim "B"
2. Shown view is standard side for single side mount 3/8-16 UNC - 2B .75[19.1] Dim "A"
* If “M” metric tie rod option, thread = M8 x 1.25 (4X SSM, 8X DSM)
* If “J” or “K” metric side mount options, M10 x 1.5  19 mm with Ø 8 mm M7  12 mm Dowel Hole
GSX40 Side Trunnion Mount with Class I Div 2 Option
6.97
3.45 177
88 1.500±.001
38.1±0.03
3.19 2.000
81 50.8
1.65
41.9
7.09
180
3.900
99.1

3.900
99.1 Dim "C"
4.400 DIM "A"
111.8
* If “Q” metric side trunnion option, 4.898 1.000
Ø 35 mm h7 124.4 25.4
GSX40 Rear Clevis Mount or Front Flange Mount
with Class I Div 2 Option
3.45 6.97
88 177
+.002
.250 ±.001 .750 -.001
6.4 +.05
3.19 .516 1.65 19.05 -.03
81
13.1 41.9
2.920
3.800
96.5 74.2
R.750
5.250 1.250 19.1
133.4 .625 DIM "D" 31.8
6.800 15.9
172.7
2.500
7.680 63.5
195.1
6" (152 mm) 8" (203 mm) 10" (254 mm) 12" (305 mm) 18" (457 mm) 1.250 CID2, GSX & GSM Series
Dim 31.8
Stroke in (mm) Stroke in (mm) Stroke in (mm) Stroke in (mm) Stroke in (mm)
A 012.6 (320) 14.6 (370) 16.6 (421) 48.8 (472) 24.6 (624)
B 10.3 (262) 12.3 (313) 14.3 (364) 16.3 (414) 22.3 (567)
C 6.0 (152) 8.0 (203) 10.0 (254) 12.0 (305) 18.0 (457) 1. Two mounting styles shown
D 14.5 (364) 16.3 (415) 18.3 (466) 20.3 (516) 26.3 (669) 2. With flange mount, dimension A
is equivalent to top two drawings
Note: Add 2.33 Inches (59.18 mm) to Dims “A & D” if ordering a Brake.
Applications with >20A rms will require the larger terminal box.
* If “G” metric clevis option, ø20 mm +0.00 / –0.07
Drawings subject to change. Consult Exlar for certified drawings.
