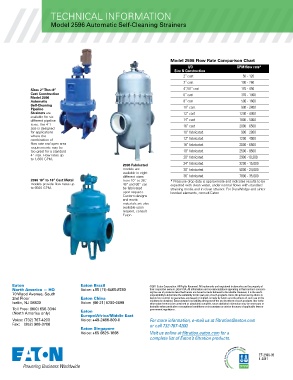

Page 14 - Eaton - Automatic self-cleaning family

///////////////////////
TECHNICAL INFORMATION

Model 2596 Automatic Self-Cleaning Strainers

Model 2596 Flow rate comparison chart
I/O GPM flow rate*
Size & Construction
2” cast 50 - 120
3” cast 100 - 260
sizes 2” Thru 8” 4”/4L” cast 170 - 450
cast construction 6” cast 370 - 1000
Model 2596
automatic 8” cast 500 - 1800
self-cleaning 10” cast 900 - 2800
pipeline
strainers are 12” cast 1200 - 4000
available for six
different pipeline 14” cast 1600 - 5000
sizes. The 4”L 16” cast 2000 - 6500
size is designed
for applications 10” fabricated 900 - 2800
where the
combination of 12” fabricated 1200 - 4000
flow rate and open area 16” fabricated 2000 - 6500
requirements may be
too great for a standard 18” fabricated 2500 - 8500
4” size. Flow rates up 20” fabricated 2900 -10,200
to 1,800 GPM.
24” fabricated 3200 - 15,000
2596 Fabricated
models are 30” fabricated 5000 - 24,000
available in eight
different sizes 36” fabricated 7800 - 35,000
2596 10” to 16” cast Metal from 10” to 36”, * Pressure drop data is approximate and indicates results to be
models provide flow rates up 48” and 60” can expected with clean water, under normal flows with standard
to 6500 GPM. be fabricated straining media and in clean strainer. For DuraWedge and sinter
upon request. bonded elements, consult Eaton
Custom designs
and exotic
materials are also
available upon
request, consult
Eaton
