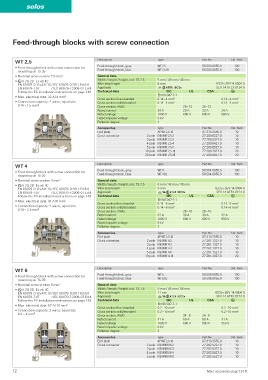

Page 12 - Wieland - Selos/Fasis

selos

Feed-through blocks with screw connection

WT 2,5 Description Type Part No. Std. Pack
Feed-through block, gray WT 2,5 58.503.0055.0 100
• Feed-through block with screw connection for
mounting on TS 35 Feed-through block, blue WT 2,5 BL 58.503.0055.6 100
• Nominal cross section 2.5 mm 2 General data
Width / length / height, incl. TS 7.5 5 mm / 48 mm / 48 mm
• ? II 2G 2D Ex eb IIC
EN 60 079-0:12+A11:13 / IEC 60 079-0:2011 Ed:6.0 Wire strip length 9 mm IEC Ex SEV14.0004 U
EN 60 079-7:07 / IEC 60 079-7:2006-07 Ed:4 Approvals ED8 IEC Ex SEV 14 ATEX 0124 U
Follow the EX installation instructions on page 149 Technical data IEC UL CSA ?
• Max. electrical data: 32 A / 4 mm 2 Cross section fine-stranded EN 60 947-7-1 0.14 – 4 mm 2
0.14 – 4 mm
2
• Connection capacity: 2 wires, equal size Cross section solid/stranded 0.14 – 4 mm 2 0.14 – 4 mm 2
0.14 – 1.5 mm 2 Cross section, AWG 26 – 12 26 – 12
Rated current 24 A 20 A 20 A 24 A
Rated voltage 1000 V 600 V 600 V 690 V
Rated impulse voltage 8 kV
Pollution degree 3
Accessories Type Part No. Std. Pack
End plate AP WT 2,5-10 07.313.2555.0 10
Cross connector 2 pole IVB WKF 2,5-2 Z7.280.6227.0 10
3 pole IVB WKF 2,5-3 Z7.280.6327.0 10
4 pole IVB WKF 2,5-4 Z7.280.6427.0 10
5 pole IVB WKF 2,5-5 Z7.280.6527.0 10
10 pole IVB WKF 2,5-10 Z7.280.7027.0 20
20 pole IVB WKF 2,5-20 Z7.280.8027.0 20
WT 4 Description Type Part No. Std. Pack
Feed-through block, gray WT 4 58.504.0055.0 100
• Feed-through block with screw connection for
mounting on TS 35 Feed-through block, blue WT 4 BL 58.504.0055.6 100
• Nominal cross section 4 mm 2 General data
• ? II 2G 2D Ex eb IIC Width / length / height, incl. TS 7.5 6 mm / 48 mm / 48 mm
EN 60 079-0:12+A11:13 / IEC 60 079-0:2011 Ed:6.0 Wire strip length 9 mm IEC Ex SEV 14.0004 U
EN 60 079-7:07 / IEC 60 079-7:2006-07 Ed:4 Approvals EMD8 IEC Ex SEV 14 ATEX 0124 U
Follow the EX installation instructions on page 149 Technical data IEC UL CSA ?
• Max. electrical data: 41 A / 6 mm 2 Cross section fine-stranded EN 60 947-7-1 0.14 – 6 mm 2
2
0.14 – 6 mm
• Connection capacity: 2 wires, equal size Cross section solid/stranded 0.14 – 6 mm 2 0.14 – 6 mm 2
0.14 – 2.5 mm 2 Cross section, AWG 26 – 10 26 – 10
Rated current 32 A 30 A 30 A 32 A
Rated voltage 1000 V 600 V 600 V 690 V
Rated impulse voltage 8 kV
Pollution degree 3
Accessories Type Part No. Std. Pack
End plate AP WT 2,5-10 07.313.2555.0 10
Cross connector 2 pole IVB WKF 4-2 Z7.261.1227.0 10
3 pole IVB WKF 4-3 Z7.261.1327.0 10
4 pole IVB WKF 4-4 Z7.261.1427.0 10
5 pole IVB WKF 4-5 Z7.261.1527.0 10
10 pole IVB WKF 4-10 Z7.261.2027.0 20

WT 6 Description Type Part No. Std. Pack
Feed-through block, gray WT 6 58.506.0055.0 100
• Feed-through block with screw connection for Feed-through block, blue WT 6 BL 58.506.0055.6 100
mounting on TS 35
• Nominal cross section 6 mm 2 General data
• ? II 2G 2D Ex eb IIC Width / length / height, incl. TS 7.5 8 mm / 48 mm / 48 mm
EN 60 079-0:12+A11:13 / IEC 60 079-0:2011 Ed:6.0 Wire strip length 11 mm IEC Ex SEV 14.0004 U
EN 60 079-7:07 / IEC 60 079-7:2006-07 Ed:4 Approvals EMD8 IEC Ex SEV 14 ATEX 0124 U
Follow the EX installation instructions on page 149 Technical data IEC UL CSA ?
• Max. electrical data: 57 A / 10 mm 2 Cross section fine-stranded EN 60 947-7-1 0.2 – 10 mm 2
2
0.2 – 10 mm
• Connection capacity: 2 wires, equal size Cross section solid/stranded 0.2 – 10 mm 2 0.2 – 10 mm 2
0.2 – 4 mm 2 Cross section, AWG 24 – 8 24 – 8
Rated current 41 A 50 A 50 A 41 A
Rated voltage 1000 V 600 V 600 V 550 V
Rated impulse voltage 8 kV
Pollution degree 3
Accessories Type Part No. Std. Pack
End plate AP WT 2,5-10 07.313.2555.0 10
Cross connector 2 pole IVB WKFN 6-2 Z7.282.5227.0 10
3 pole IVB WKFN 6-3 Z7.282.5327.0 10
4 pole IVB WKFN 6-4 Z7.282.5427.0 10
5 pole IVB WKFN 6-5 Z7.282.5527.0 10

12 More accessories page 124 ff.
