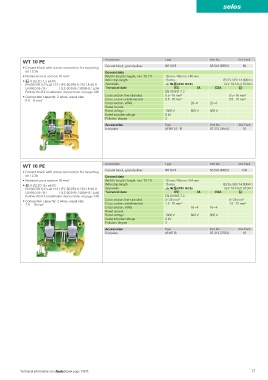

WT 10 PE Description Type Part No. Std. Pack
Ground block, green/yellow WT 10 PE 58.510.9055.0 50
• Ground block with screw connection for mounting
on TS 35 General data
• Nominal cross section 10 mm 2 Width / length / height, incl. TS 7.5 10 mm / 48 mm / 48 mm
• ? II 2G 2D Ex eb IIC Wire strip length 13 mm IEC Ex SEV 14.0004 U
EN 60 079-0:12+A11:13 / IEC 60 079-0:2011 Ed:6.0 Approvals EMD8 IEC Ex SEV 14 ATEX 0124 U
EN 60 079-7:07 / IEC 60 079-7:2006-07 Ed:4 Technical data IEC UL CSA ?
Follow the EX installation instructions on page 149 EN 60 947-7-2
• Connection capacity: 2 wires, equal size Cross section fine-stranded 0.5 – 16 mm 2 2 0.5 – 16 mm 2 2
0.5 – 6 mm 2 Cross section solid/stranded 0.5 – 16 mm 0.5 – 16 mm
Cross section, AWG 20 – 6 20 – 6
Rated current
Rated voltage 1000 V 600 V 600 V
Rated impulse voltage 8 kV
Pollution degree 3
Accessories Type Part No. Std. Pack
End plate AP WT 2,5 - 10 07.313.2555.0 10

WT 16 PE Description Type Part No. Std. Pack
Ground block, green/yellow WT 16 PE 58.516.9055.0 100
• Ground block with screw connection for mounting
on TS 35 General data
• Nominal cross section 16 mm 2 Width / length / height, incl. TS 7.5 12 mm / 58 mm / 54 mm
• ? II 2G 2D Ex eb IIC Wire strip length 15 mm IEC Ex SEV 14.0004 U
EN 60 079-0:12+A11:13 / IEC 60 079-0:2011 Ed:6.0 Approvals EMD8 IEC Ex SEV 14 ATEX 0124 U
EN 60 079-7:07 / IEC 60 079-7:2006-07 Ed:4 Technical data IEC UL CSA ?
Follow the EX installation instructions on page 149 EN 60 947-7-2
• Connection capacity: 2 wires, equal size Cross section fine-stranded 4 – 25 mm 2 2 4 – 25 mm 2 2
2.5 – 10 mm 2 Cross section solid/stranded 1.5 – 25 mm 1.5 – 25 mm
Cross section, AWG 16 – 4 16 – 4
Rated current
Rated voltage 1000 V 600 V 600 V
Rated impulse voltage 8 kV
Pollution degree 3
Accessories Type Part No. Std. Pack
End plate AP WT 16 07.313.2755.0 10
