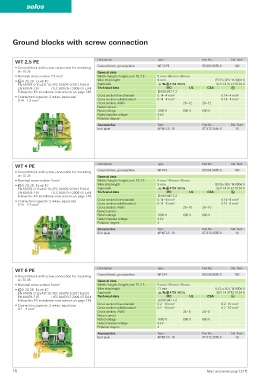

Page 16 - Wieland - Selos/Fasis

selos

Ground blocks with screw connection

WT 2,5 PE Description Type Part No. Std. Pack
Ground block, green/yellow WT 2,5 PE 58.503.9055.0 100
• Ground block with screw connection for mounting
on TS 35 General data
• Nominal cross section 2.5 mm 2 Width / length / height, incl. TS 7.5 5 mm / 48 mm / 48 mm
• ? II 2G 2D Ex eb IIC Wire strip length 9 mm IEC Ex SEV 14.0004 U
EN 60 079-0:12+A11:13 / IEC 60 079-0:2011 Ed:6.0 Approvals EMD8 IEC Ex SEV 14 ATEX 0124 U
EN 60 079-7:07 / IEC 60 079-7:2006-07 Ed:4 Technical data IEC UL CSA ?
Follow the EX installation instructions on page 149 EN 60 947-7-2
• Connection capacity: 2 wires, equal size Cross section fine-stranded 0.14 – 4 mm 2 2 0.14 – 4 mm 2 2
0.14 – 1.5 mm 2 Cross section solid/stranded 0.14 – 4 mm 0.14 – 4 mm
Cross section, AWG 26 – 12 26 – 12
Rated current
Rated voltage 1000 V 600 V 600 V
Rated impulse voltage 8 kV
Pollution degree 3
Accessories Type Part No. Std. Pack
End plate AP WT 2,5 - 10 07.313.2555.0 10

WT 4 PE Description Type Part No. Std. Pack
Ground block, green/yellow WT 4 PE 58.504.9055.0 100
• Ground block with screw connection for mounting
on TS 35 General data
• Nominal cross section 4 mm 2 Width / length / height, incl. TS 7.5 6 mm / 48 mm / 48 mm
• ? II 2G 2D Ex eb IIC Wire strip length 9 mm IEC Ex SEV 14.0004 U
EN 60 079-0:12+A11:13 / IEC 60 079-0:2011 Ed:6.0 Approvals EMD8 IEC Ex SEV 14 ATEX 0124 U
EN 60 079-7:07 / IEC 60 079-7:2006-07 Ed:4 Technical data IEC UL CSA ?
Follow the EX installation instructions on page 149 EN 60 947-7-2
• Connection capacity: 2 wires, equal size Cross section fine-stranded 0.14 – 6 mm 2 2 0.14 – 6 mm 2 2
0.14 – 2.5 mm 2 Cross section solid/stranded 0.14 – 6 mm 0.14 – 6 mm
Cross section, AWG 26 – 10 26 – 10
Rated current
Rated voltage 1000 V 600 V 600 V
Rated impulse voltage 8 kV
Pollution degree 3
Accessories Type Part No. Std. Pack
End plate AP WT 2,5 - 10 07.313.2555.0 10

WT 6 PE Description Type Part No. Std. Pack
Ground block, green/yellow WT 6 PE 58.506.9055.0 100
• Ground block with screw connection for mounting
on TS 35 General data
• Nominal cross section 6 mm 2 Width / length / height, incl. TS 7.5 8 mm / 48 mm / 48 mm
• ? II 2G 2D Ex eb IIC Wire strip length 11 mm IEC Ex SEV 14.0004 U
EN 60 079-0:12+A11:13 / IEC 60 079-0:2011 Ed:6.0 Approvals EMD8 IEC Ex SEV 14 ATEX 0124 U
EN 60 079-7:07 / IEC 60 079-7:2006-07 Ed:4 Technical data IEC UL CSA ?
Follow the EX installation instructions on page 149 EN 60 947-7-2
• Connection capacity: 2 wires, equal size Cross section fine-stranded 0.2 – 10 mm 2 2 0.2 – 10 mm 2 2
0.2 – 4 mm 2 Cross section solid/stranded 0.2 – 10 mm 0.2 – 10 mm
Cross section, AWG 24 – 8 24 – 8
Rated current
Rated voltage 1000 V 600 V 600 V
Rated impulse voltage 8 kV
Pollution degree 3
Accessories Type Part No. Std. Pack
End plate AP WT 2,5 - 10 07.313.2555.0 10

16 More accessories page 124 ff.
