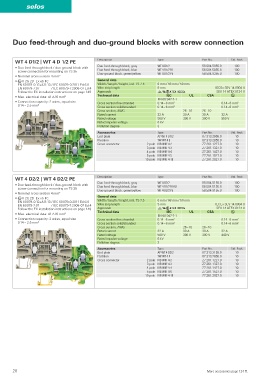

selos

Duo feed-through and duo-ground blocks with screw connection

WT 4 D1/2 | WT 4 D 1/2 PE Description Type Part No. Std. Pack
Duo feed-through block, gray WT 4 D1/2 58.504.5055.0 100
• Duo feed-through block / duo-ground block with
screw connection for mounting on TS 35 Duo feed-through block, blue WT 4 D1/2 BL 58.504.5055.6 100
Duo-ground block, green/yellow WT 4 D1/2 PE 58.504.9355.0 100
• Nominal cross section 4 mm 2
• ? II 2G 2D Ex eb IIC General data
EN 60 079-0:12+A11:13 / IEC 60 079-0:2011 Ed:6.0 Width / length / height, incl. TS 7.5 6 mm / 56 mm / 50 mm
EN 60 079-7:07 / IEC 60 079-7:2006-07 Ed:4 Wire strip length 9 mm IEC Ex SEV 14.0004 U
Follow the EX installation instructions on page 149 Approvals EMD8 IEC Ex SEV 14 ATEX 0124 U
IEC
• Max. electrical data: 41 A / 6 mm 2 Technical data EN 60 947-7-1 UL CSA ?
• Connection capacity: 2 wires, equal size Cross section fine-stranded 0.14 – 6 mm 2 0.14 – 6 mm 2
0.14 – 2.5 mm 2 Cross section solid/stranded 0.14 – 6 mm 2 0.14 – 6 mm 2
Cross section, AWG 26 – 10 26 – 10
Rated current 32 A 30 A 30 A 32 A
Rated voltage 500 V 300 V 300 V 550 V
Rated impulse voltage 6 kV
Pollution degree 3
Accessories Type Part No. Std. Pack
End plate AP WT 4 D1/2 07.313.2955.0 10
Partition TW WT 4 E 07.313.2855.0 10
Cross connector 2 pole IVB WKF 4-2 Z7.261.1227.0 10
3 pole IVB WKF 4-3 Z7.261.1327.0 10
4 pole IVB WKF 4-4 Z7.261.1427.0 10
5 pole IVB WKF 4-5 Z7.261.1527.0 10
10 pole IVB WKF 4-10 Z7.261.2027.0 10

WT 4 D2/2 | WT 4 D2/2 PE Description Type Part No. Std. Pack
Duo feed-through block, gray WT 4 D2/2 58.504.5155.0 100
• Duo feed-through block / duo-ground block with Duo feed-through block, blue WT 4 D2/2 BLAU 58.504.5155.6 100
screw connection for mounting on TS 35 Duo-ground block, green/yellow WT 4 D2/2 PE 58.504.9155.0 100
• Nominal cross section 4 mm 2
• ? II 2G 2D Ex eb IIC General data 6 mm / 68 mm / 50 mm
Width / length / height, incl. TS 7.5
EN 60 079-0:12+A11:13 / IEC 60 079-0:2011 Ed:6.0
EN 60 079-7:07 / IEC 60 079-7:2006-07 Ed:4 Wire strip length 9 mm IEC Ex SEV 14.0004 U
Follow the EX installation instructions on page 149 Approvals EMD8 IEC Ex SEV 14 ATEX 0124 U
• Max. electrical data: 41 A / 6 mm 2 Technical data IEC UL CSA ?
EN 60 947-7-1
• Connection capacity: 2 wires, equal size Cross section fine-stranded 0.14 – 6 mm 2 0.14 – 6 mm 2
0.14 – 2.5 mm 2 Cross section solid/stranded 0.14 – 6 mm 2 0.14 – 6 mm 2
Cross section, AWG 26 – 10 26 – 10
Rated current 32 A 30 A 30 A 32 A
Rated voltage 500 V 300 V 300 V 440 V
Rated impulse voltage 6 kV
Pollution degree 3
Accessories Type Part No. Std. Pack
End plate AP WT 4 D2/2 07.313.3155.0 10
Partition TW WT 4 E 07.313.2855.0 10
Cross connector 2 pole IVB WKF 4-2 Z7.261.1227.0 10
3 pole IVB WKF 4-3 Z7.261.1327.0 10
4 pole IVB WKF 4-4 Z7.261.1427.0 10
5 pole IVB WKF 4-5 Z7.261.1527.0 10
10 pole IVB WKF 4-10 Z7.261.2027.0 10

20 More accessories page 124 ff.
