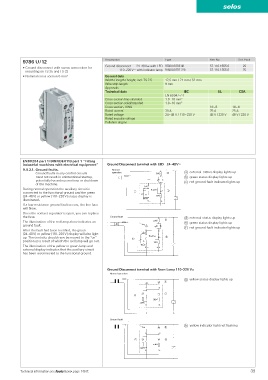

selos

9786 U / 12 Description Type Part No. Std. Pack
Ground disconnect 24 - 48 V with LED 9760 U/8 TKE 48 57.110.1655.0 25
• Ground disconnect with screw connection for
mounting on TS 35 and TS 32 110 - 220 V with indicator lamp 9760 U/8 TKE 220 57.110.1555.0 25
• Nominal cross section 6 mm 2 General data
Width / length / height, incl. TS 7.5 17,5 mm / 71 mm / 52 mm
Wire strip length 9 mm
Approvals
Technical data IEC UL CSA
EN 60 947-7-1
Cross section fine-stranded 1.0 – 10 mm 2
Cross section solid/stranded 1.0 – 10 mm 2
Cross section, AWG 18 – 8 18 – 8
Rated current 30 A 25 A 25 A
Rated voltage 24 – 48 V / 110 – 220 V 48 V / 220 V 48 V / 220 V
Rated impulse voltage
Pollution degree

EN 60 204 part 1 / DIN VDE 0113 part 1 “Fitting
industrial machines with electrical equipment” Ground Disconnect terminal with LED 24 - 48 V
9.4.3.1. Ground faults. Normal
Ground faults in any control circuits operation a external status display lights up
must not result in unintentional startup, b green status display lights up
potentially hazardous motions or shutdown c red ground-fault indicator lights up
of the machine.
During normal operation the auxiliary circuit is
connected to the functional ground and the green
(24 - 48 V) or yellow (110 - 220 V) status display is
illuminated.
If a low resistance ground fault occurs, the line fuse
will blow.
Once the contact separator is open, you can replace
the fuse. Ground fault d external status display lights up
The illumination of the red lamp alone indicates an e green status display lights up
ground fault. f red ground-fault indicator lights up
After the fault had been rectified, the green
(24 - 48 V) or yellow (110 - 220 V) display will also light
up. The contacts should now be moved to the “on”
position as a result of which the red lamp will go out.
The illumination of the yellow or green lamp and
external display indicates that the auxiliary circuit
has been reconnected to the functional ground.

Ground Disconnect terminal with Neon Lamp 110 - 220 V
Normal operation
g yellow status display lights up

Ground fault
h yellow indicator light not flashing

Technical information see facts & data page 146 ff. 39
