selos

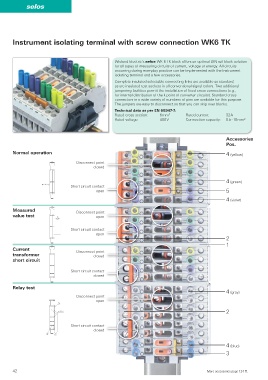

Instrument isolating terminal with screw connection WK6 TK

Wieland Electric‘s selos WK 6 TK block offers an optimal DIN rail block solution
for all types of measuring circuits of current, voltage or energy. All circuits
occurring during everyday practice can be implemented with the Instrument
isolating terminal and a few accessories.
Complete insulated selectable connecting links are available as standard,
as are insulated test sockets in all conventional signal colors. Two additional
jumpering facilities permit the installation of fixed cross connections (e.g.,
for internal distribution of the k point of converter circuits). Standard cross
connectors in a wide variety of numbers of pins are available for this purpose.
The jumpers are easy to disconnect so that you can skip over blocks.
Technical data as per EN 60947-7:
Rated cross section: 6 mm² Rated current: 32 A
Rated voltage: 400 V Connection capacity: 0.5 - 10 mm²

Accessories
Pos.

Normal operation 4 (yellow)
Disconnect point
closed

4 (green)
Short circuit contact
open 5

4 (violet)

Measured Disconnect point
value test open

Short circuit contact
open
2
1
Current Disconnect point
transformer closed
short circuit

Short circuit contact
closed

Relay test
4 (gray)
Disconnect point
open
2

Short circuit contact
closed

4 (blue)
3

42 More accessories page 124 ff.
