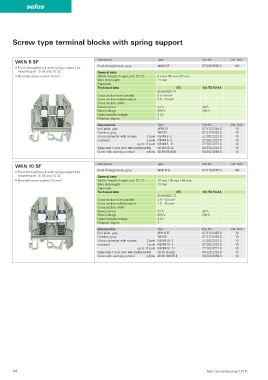

mit Federunterstützung, mit Bolzenanschluss
selos

Screw type terminal blocks with spring support

WKN 6 SF Description Type Part No. Std. Pack
Feed-through block, gray WKN 6 SF 57.506.0555.0 100
• Feed-through block with spring support for
mounting on TS 35 and TS 32 General data
• Nominal cross section 6 mm 2 Width / length / height, incl. TS 7.5 8 mm / 54 mm / 57 mm
Wire strip length 11 mm
Approvals
Technical data IEC EA TS 50-18
EN 60 947-7-1
Cross section fine-stranded 0.5 – 6 mm²
Cross section solid/stranded 0.5 – 10 mm²
Cross section, AWG
Rated current 41 A 30 A
Rated voltage 800 V 500 V
Rated impulse voltage 8 kV
Pollution degree 3
Accessories Type Part No. Std. Pack
End plate, gray APN 6 SF 07.313.2355.0 10
Partition, gray TW 6 TK 07.312.0453.0 10
Cross connector with screws 2 pole IVB WK 6 - 2 Z7.282.2227.0 10
insulated 3 pole IVB WK 6 - 3 Z7.282.2327.0 10
up to 12 pole IVB WK 6 - 12 Z7.282.3227.0 10
Single cover f. cross conn. with marking facility AD VB 6 GELB 04.326.2253.8 10
Cover with warning symbol yellow AD VB 8/4 GELB 04.343.4956.8 10

WKN 10 SF Description Type Part No. Std. Pack
Feed-through block, gray WKN 10 SF 57.510.0555.0 100
• Feed-through block with spring support for
mounting on TS 35 and TS 32 General data
• Nominal cross section 10 mm 2 Width / length / height, incl. TS 7.5 10 mm / 55 mm / 64 mm
Wire strip length 13 mm
Approvals
Technical data IEC EA TS 50-18
EN 60 947-7-1
Cross section fine-stranded 2.5 – 10 mm 2
Cross section solid/stranded 1.5 – 16 mm 2
Cross section, AWG
Rated current 57 A 30 A
Rated voltage 800 V 500 V
Rated impulse voltage 8 kV
Pollution degree 3
Accessories Type Part No. Std. Pack
End plate, gray APN 10 SF 07.313.2455.0 10
Partition, gray TW 6 TK 07.312.0453.0 10
Cross connector with screws 2 pole IVB WK 10 - 2 Z7.283.2227.0 10
insulated 3 pole IVB WK 10 - 3 Z7.283.2327.0 10
up to 12 pole IVB WK 10 - 12 Z7.283.3227.0 10
Single cover f. cross conn. with marking facility AD VB 10 GELB 04.326.2353.8 10
Cover with warning symbol yellow AD VB 10/4 GELB 04.343.5056.8 10

44 More accessories page 124 ff.
