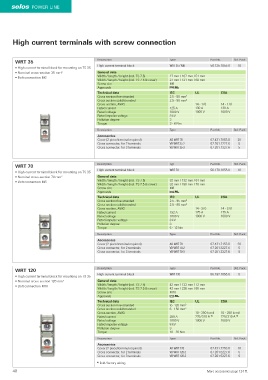

Page 48 - Wieland - Selos/Fasis

selos power line

High current terminals with screw connection

WRT 35 Description Type Part No. Std. Pack
High current terminal block WRT 35 / M6 56.135.1055.0 10
• High current terminal block for mounting on TS 35
• Nominal cross-section 35 mm 2 General data
Width / length / height (incl. TS 7.5) 27 mm / 107 mm / 51 mm
• Bolt connection M6
Width / length / height (incl. TS 7.5 & cover) 27 mm / 131 mm / 60 mm
Screw size M6
Approvals Xa
Technical data IEC UL CSA
Cross section fine-stranded 2.5 - 50 mm 2
Cross section solid/stranded 2.5 - 50 mm 2
Cross-section, AWG 14 - 1 / 0 14 - 1 / 0
Rated current 125 A 130 A 130 A
Rated voltage 1000 V 1000 V 1000 V
Rated impulse voltage 8 kV
Pollution degree 3
Torque 3 - 6 Nm
Description Type Part No. Std. Pack
Accessories
Cover (2 piece/terminal required) AD WRT 35 07.431.7053.8 20
Cross connector, for 2 terminals VB WRT 35-2 07.201.1227.6 5
Cross connector, for 3 terminals VB WRT 35-3 07.201.1327.6 5

WRT 70 Description Typ Part No. Std. Pack
High current terminal block WRT 70 56.170.1055.0 10
• High current terminal block for mounting on TS 35
• Nominal cross-section 70 mm 2 General data
Width / length / height (incl. TS 7.5) 32 mm / 132 mm / 61 mm
• Bolt connection M8
Width / length / height (incl. TS 7.5 & cover) 32 mm / 180 mm / 70 mm
Screw size M8
Approvals Xa
Technical data IEC UL CSA
Cross section fine-stranded 2.5 - 95 mm 2
Cross section solid/stranded 2.5 - 95 mm 2
Cross-section, AWG 14 - 3 / 0 14 - 3 / 0
Rated current 192 A 175 A 175 A
Rated voltage 1000 V 1000 V 1000 V
Rated impulse voltage 8 kV
Pollution degree 3
Torque 6 - 12 Nm
Description Type Part No. Std. Pack
Accessories
Cover (2 piece/terminal required) AD WRT 70 07.431.7153.8 20
Cross connector, for 2 terminals VB WRT 70-2 07.201.3227.6 5
Cross connector, for 3 terminals VB WRT 70-3 07.201.3327.6 5

WRT 120 Description Type Part No. Std. Pack
High current terminal block WRT 120 56.197.1055.0 5
• High current terminal block for mounting on TS 35
• Nominal cross-section 120 mm 2 General data
Width / length / height (incl. TS 7.5) 42 mm / 133 mm / 72 mm
• Bolt connection M10
Width / length / height (incl. TS 7.5 & cover) 42 mm / 226 mm / 80 mm
Screw size M10
Approvals Xa
Technical data IEC UL CSA
Cross section fine-stranded to 120 mm 2
Cross section solid/stranded 6 - 150 mm 2
Cross-section, AWG 10 - 250 kcmil 10 - 250 kcmil
Rated current 269 A 225 / 310 A * ) 225 / 310 A * )
Rated voltage 1000 V 1000 V 1000 V
Rated impulse voltage 8 kV
Pollution degree 3
Torque 10 - 20 Nm
Description Type Part No. Std. Pack
Accessories
Cover (2 piece/terminal required) AD WRT 120 07.431.7253.8 10
Cross connector, for 2 terminals VB WRT 120-2 07.201.5227.6 5
Cross connector, for 3 terminals VB WRT 120-3 07.201.5327.6 5
)
* field / factory wiring
48 More accessories page 124 ff.
