selos power line

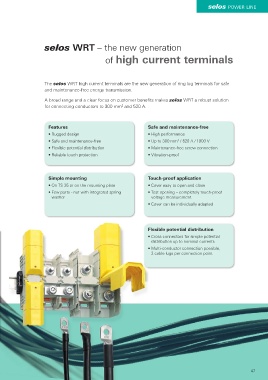

selos WRT – the new generation
of high current terminals
The selos WRT high current terminals are the new generation of ring lug terminals for safe
and maintenance-free energy transmission.
A broad range and a clear focus on customer benefits makes selos WRT a robust solution
2
for connecting conductors to 300 mm and 520 A.
Features Safe and maintenance-free
• Rugged design • High performance
• Safe and maintenance-free • Up to 300 mm / 520 A / 1000 V
2
• Flexible potential distribution • Maintenance-free screw connection
• Reliable touch protection • Vibration-proof
Simple mounting Touch-proof application
• On TS 35 or on the mounting plate • Cover easy to open and close
• Few parts - nut with integrated spring • Test opening – completely touch-proof
washer voltage measurement
• Cover can be individually adapted
Flexible potential distribution
• Cross connectors for simple potential
distribution up to nominal currents
• Multi-conductor connection possible,
2 cable lugs per connection point
