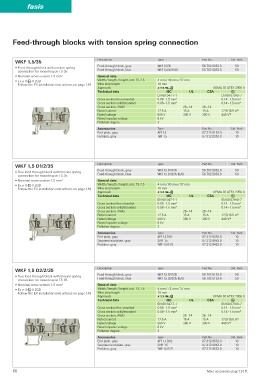

Page 66 - Wieland - Selos/Fasis

fasis

Feed-through blocks with tension spring connection

WKF 1,5/35 Description Type Part No. Std. Pack
Feed-through block, gray WKF 1,5/35 56.702.0053.0 50
• Feed-through block with tension spring
connection for mounting on TS 35 Feed-through block, blue WKF 1,5/35 BLAU 56.702.0053.6 50
• Nominal cross section 1.5 mm 2 General data
• Ex e II ? II 2GD Width / length / height, incl. TS 7.5 4 mm / 49 mm / 37 mm
Follow the EX installation instructions on page 149 Wire strip length 10 mm
Approvals 8aD KEMA 03 ATEX 2056 U
Technical data IEC UL CSA ?
EN 60 947-7-1 EN 60 079-0/-7
Cross section fine-stranded 0.08 – 1.5 mm 2 0.14 – 1.5 mm 2
Cross section solid/stranded 0.08 – 1.5 mm 2 0.14 – 1.5 mm 2
Cross section, AWG 26 – 14 26 – 14
Rated current 17.5 A 15 A 15 A 17.5/16.5 A 3)
Rated voltage 500 V 300 V 300 V 440 V* )
Rated impulse voltage 6 kV
Pollution degree 3
Accessories Type Part No. Std. Pack
End plate, gray APF 1,5 07.312.8153.0 10
Partition, gray TWF 1,5 07.312.8253.0 10

WKF 1,5 D1/2/35 Description Type Part No. Std. Pack
Feed-through block, gray WKF 1,5 D1/2/35 56.702.5053.0 50
• Duo feed-through block with tension spring
connection for mounting on TS 35 Feed-through block, blue WKF 1,5 D1/2/35 BLAU 56.702.5053.6 50
• Nominal cross section 1.5 mm 2 General data
• Ex e II ? II 2GD Width / length / height, incl. TS 7.5 4 mm / 60 mm / 37 mm
Follow the EX installation instructions on page 149 Wire strip length 10 mm
Approvals 8aD KEMA 03 ATEX 2056 U
Technical data IEC UL CSA ?
EN 60 947-7-1 EN 60 079-0/-7
Cross section fine-stranded 0.08 – 1.5 mm 2 0.14 – 1.5 mm 2
Cross section solid/stranded 0.08 – 1.5 mm 2 0.14 – 1.5 mm 2
Cross section, AWG 26 – 14 26 – 14
Rated current 17.5 A 15 A 15 A 17.5/16.5 A 3)
Rated voltage 500 V 300 V 300 V 440 V* )
Rated impulse voltage 6 kV
Pollution degree 3
Accessories Type Part No. Std. Pack
End plate, gray APF 1,5 D1/2 07.312.8353.0 10
Segment end plate, gray SAPF 1,5 07.312.8953.0 10
Partition, gray TWF 1,5 D1/2 07.312.8453.0 10

WKF 1,5 D2/2/35 Description Type Part No. Std. Pack
Feed-through block, gray WKF 1,5 D2/2/35 56.702.5153.0 50
• Duo feed-through block with tension spring Feed-through block, blue WKF 1,5 D2/2/35 BLAU 56.702.5153.6 50
connection for mounting on TS 35
• Nominal cross section 1.5 mm 2 General data
• Ex e II ? II 2GD Width / length / height, incl. TS 7.5 4 mm / 72 mm / 37 mm
Follow the EX installation instructions on page 149 Wire strip length 10 mm
Approvals 8aD KEMA 03 ATEX 2056 U
Technical data IEC UL CSA ?
EN 60 947-7-1 EN 60 079-0/-7
Cross section fine-stranded 0.08 – 1.5 mm 2 0.14 – 1.5 mm 2
Cross section solid/stranded 0.08 – 1.5 mm 2 0.14 – 1.5 mm 2
Cross section, AWG 26 – 14 26 – 14
Rated current 17.5 A 15 A 15 A 17.5/16.5 A 3)
Rated voltage 500 V 300 V 300 V 440 V* )
Rated impulse voltage 6 kV
Pollution degree 3
Accessories Type Part No. Std. Pack
End plate, gray APF 1,5 D2/2 07.312.8553.0 10
Segment end plate, gray SAPF 1,5 07.312.8953.0 10
Partition, gray TWF 1,5 D2/2 07.312.8653.0 10

66 More accessories page 124 ff.
