P. 61
selos classic line

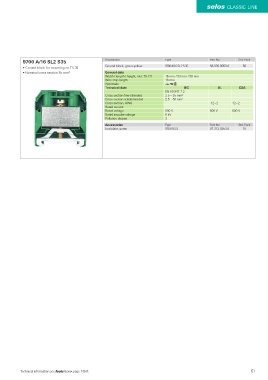

9700 A/16 SL2 S35 Description Type Part No. Std. Pack
Ground block, green-yellow 9700 A/16 SL 2 S 35 56.035.9053.0 50
• Ground block for mounting on TS 35
• Nominal cross section 35 mm 2 General data
Width / length / height, incl. TS 7.5 16 mm / 53 mm / 58 mm
Wire strip length 18 mm
Approvals EMD
Technical data IEC UL CSA
EN 60 947-7-2
Cross section fine-stranded 2.5 – 35 mm 2
Cross section solid/stranded 2.5 – 50 mm 2
Cross section, AWG 12 – 2 12 – 2
Rated current
Rated voltage 800 V 600 V 600 V
Rated impulse voltage 8 kV
Pollution degree 3
Accessories Type Part No. Std. Pack
End plate, green 9701/16 SL 07.312.0353.0 10
Technical information see facts & data page 146 ff. 61
