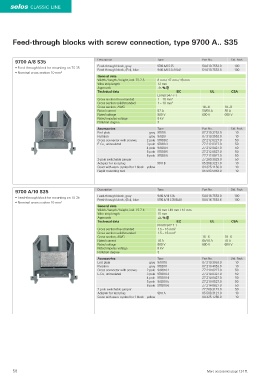

Page 58 - Wieland - Selos/Fasis

selos classic line

Feed-through blocks with screw connection, type 9700 A.. S35

9700 A/8 S35 Description Type Part No. Std. Pack
Feed-through block, gray 9700 A/8 S 35 54.010.7553.0 100
• Feed-through block for mounting on TS 35
Feed-through block, (Ex)i, blue 9700 A/8 S 35 BLAU 54.010.7553.6 100
• Nominal cross section 10 mm 2
General data
Width / length / height, incl. TS 7.5 8 mm / 47 mm / 48 mm
Wire strip length 12 mm
Approvals EMD
Technical data IEC UL CSA
EN 60 947-7-1
Cross section fine-stranded 1 – 10 mm 2
Cross section solid/stranded 1 – 10 mm 2
Cross section, AWG 18 – 8 18 – 8
Rated current 57 A 50/50 A 55 A
Rated voltage 800 V 600 V 600 V
Rated impulse voltage 8 kV
Pollution degree 3
Accessories Type Part No. Std. Pack
End plate gray 9701/8 07.310.3253.0 10
Partition gray 9702/8 07.310.3553.0 10
Cross connector with screws, 2 pole 9703/8-2 Z7.212.0227.0 50
E-Cu, uninsulated 3 pole 9703/8-3 Z7.212.0327.0 50
4 pole 9703/8-4 Z7.212.0427.0 50
5 pole 9703/8-5 Z7.212.0527.0 50
6 pole 9703/8-6 Z7.212.0627.0 50
2-pole switchable jumper Z7.269.3023.0 50
Adapter for test plug 9011 B 05.508.3221.0 10
Cover with warn. symbol for 1 block yellow 04.325.1156.0 10
Rapid mounting tool 05.593.5953.0 10

9700 A/10 S35 Description Type Part No. Std. Pack
Feed-through block, gray 9700 A/10 S 35 54.016.7553.0 100
• Feed-through block for mounting on TS 35 Feed-through block, (Ex)i, blue 9700 A/10 S 35 BLAU 54.016.7553.6 100
• Nominal cross section 16 mm 2
General data
Width / length / height, incl. TS 7.5 10 mm / 49 mm / 51 mm
Wire strip length 15 mm
Approvals EMD
Technical data IEC UL CSA
EN 60 947-7-1
Cross section fine-stranded 1.5 – 16 mm 2
Cross section solid/stranded 1.5 – 16 mm 2
Cross section, AWG 18 – 6 18 – 6
Rated current 76 A 65/70 A 70 A
Rated voltage 800 V 600 V 600 V
Rated impulse voltage 8 kV
Pollution degree 3
Accessories Type Part No. Std. Pack
End plate gray 9701/10 07.310.3953.0 10
Partition gray 9702/10 07.310.4053.0 10
Cross connector with screws, 2 pole 9703/10-2 Z7.214.0227.0 50
E-Cu, uninsulated 3 pole 9703/10-3 Z7.214.0327.0 50
4 pole 9703/10-4 Z7.214.0427.0 50
5 pole 9703/10-5 Z7.214.0527.0 50
6 pole 9703/10-6 Z7.214.0627.0 50
2-pole switchable jumper Z7.269.3123.0 50
Adapter for test plug 9011 A 05.508.3121.0 10
Cover with warn. symbol for 1 block yellow 04.325.1256.0 10

58 More accessories page 124 ff.
